Surya Tiny Home
32 x 8 FT
tiny home on wheels
2-4 people
sleeps up to 2-4 people
$75,000
starting price
design
The Surya is a comfortable and luxurious design, perfect for long term/full time living or a gorgeous short term rental/guest house.

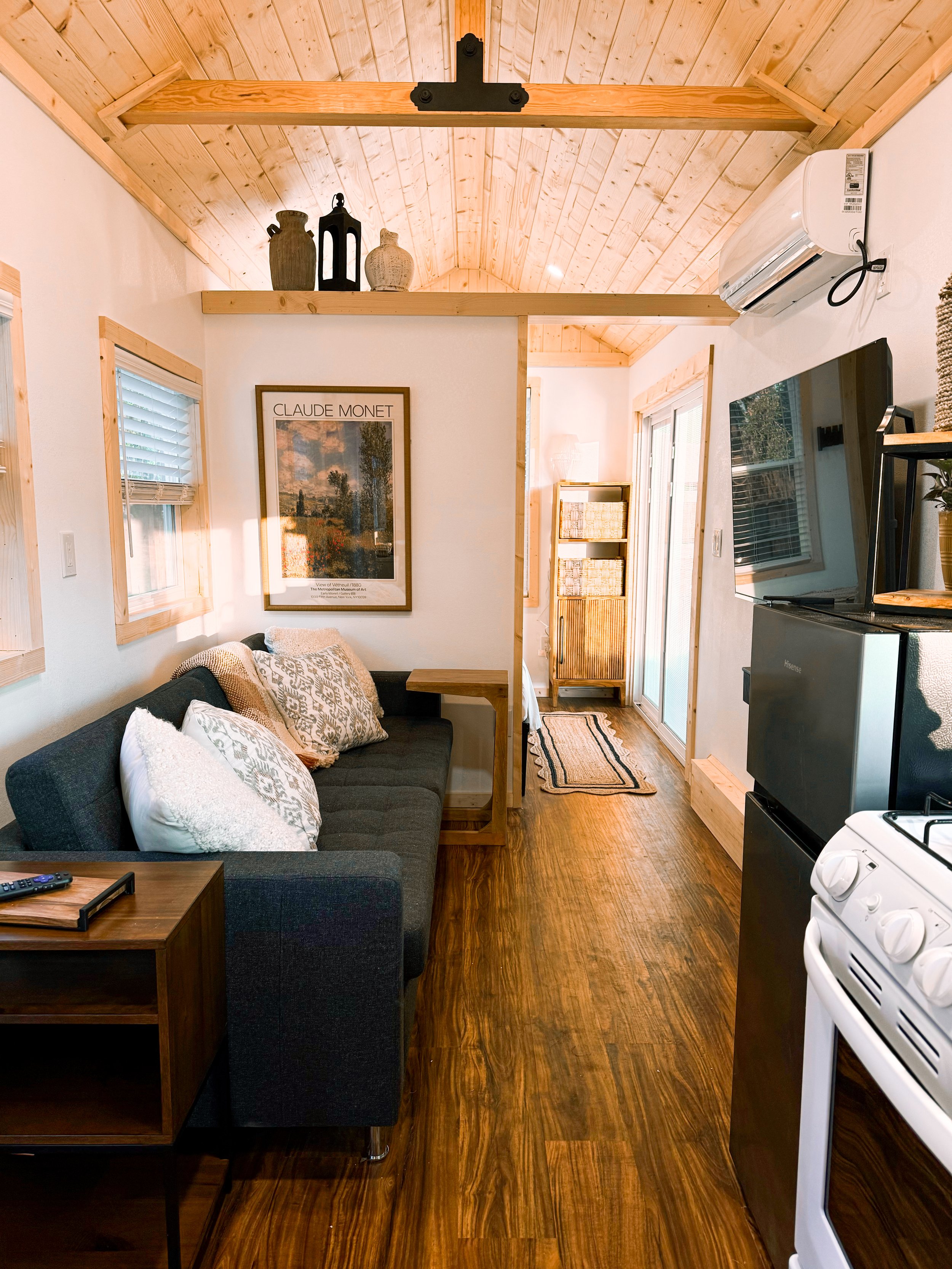

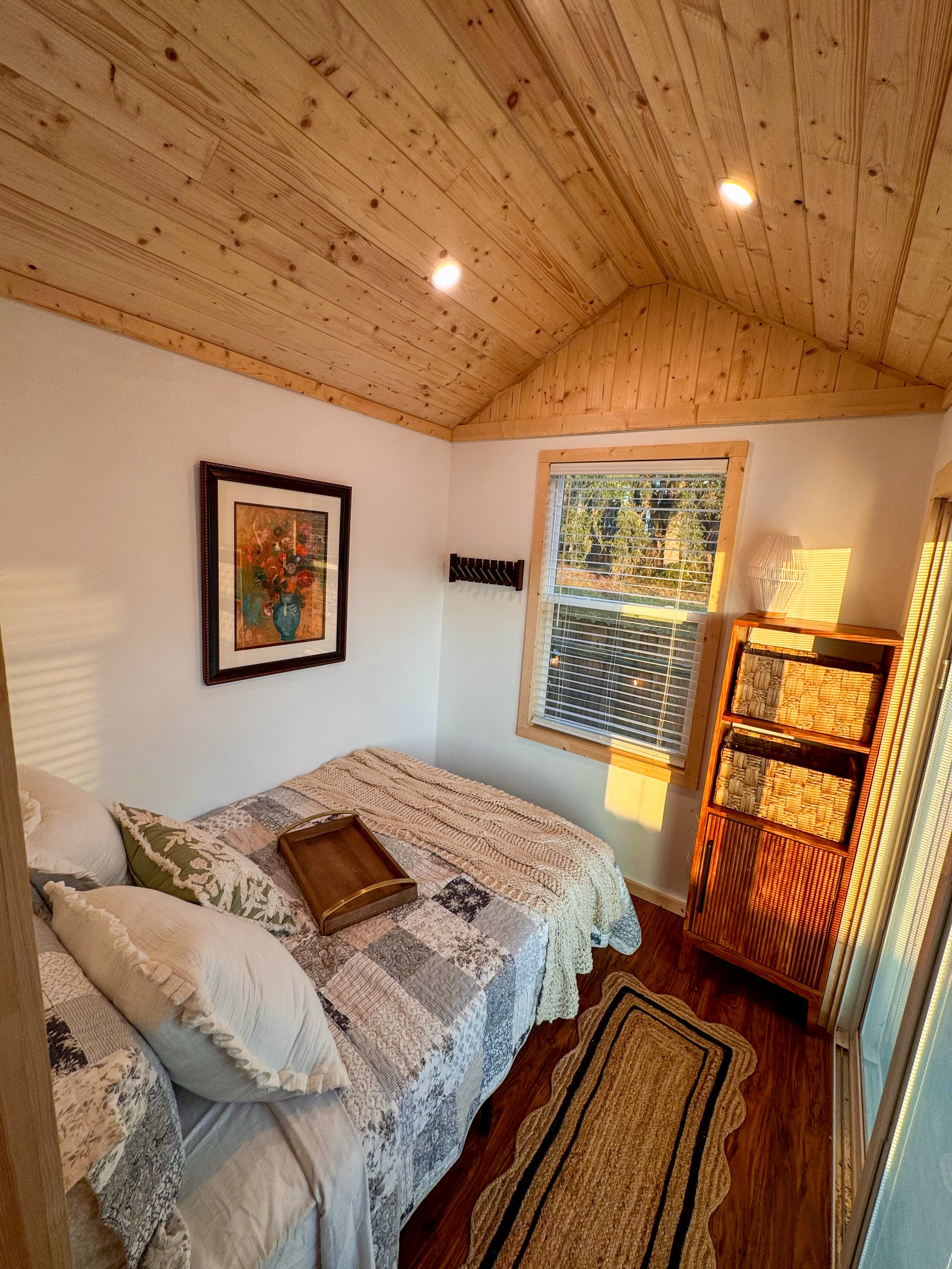

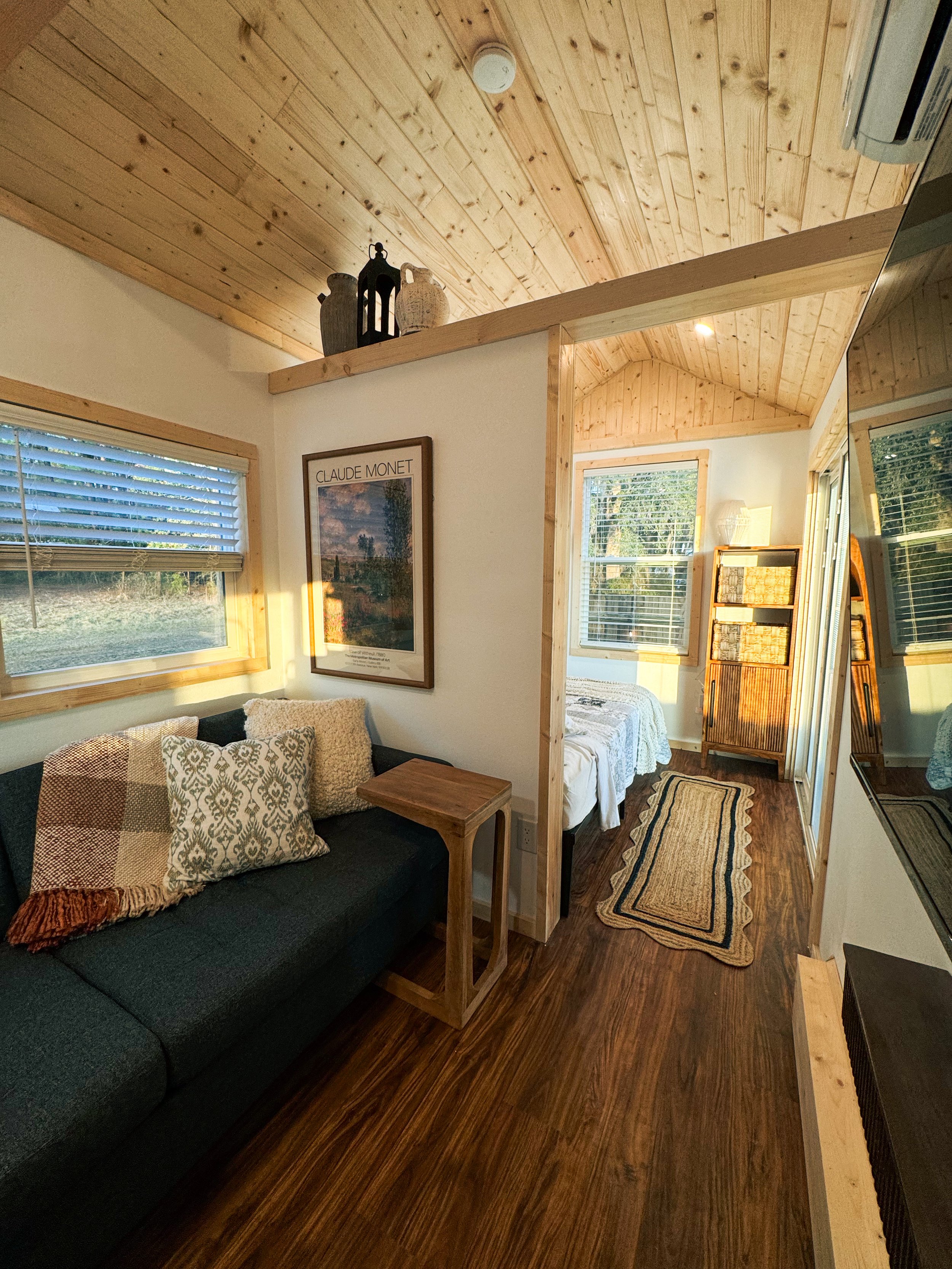

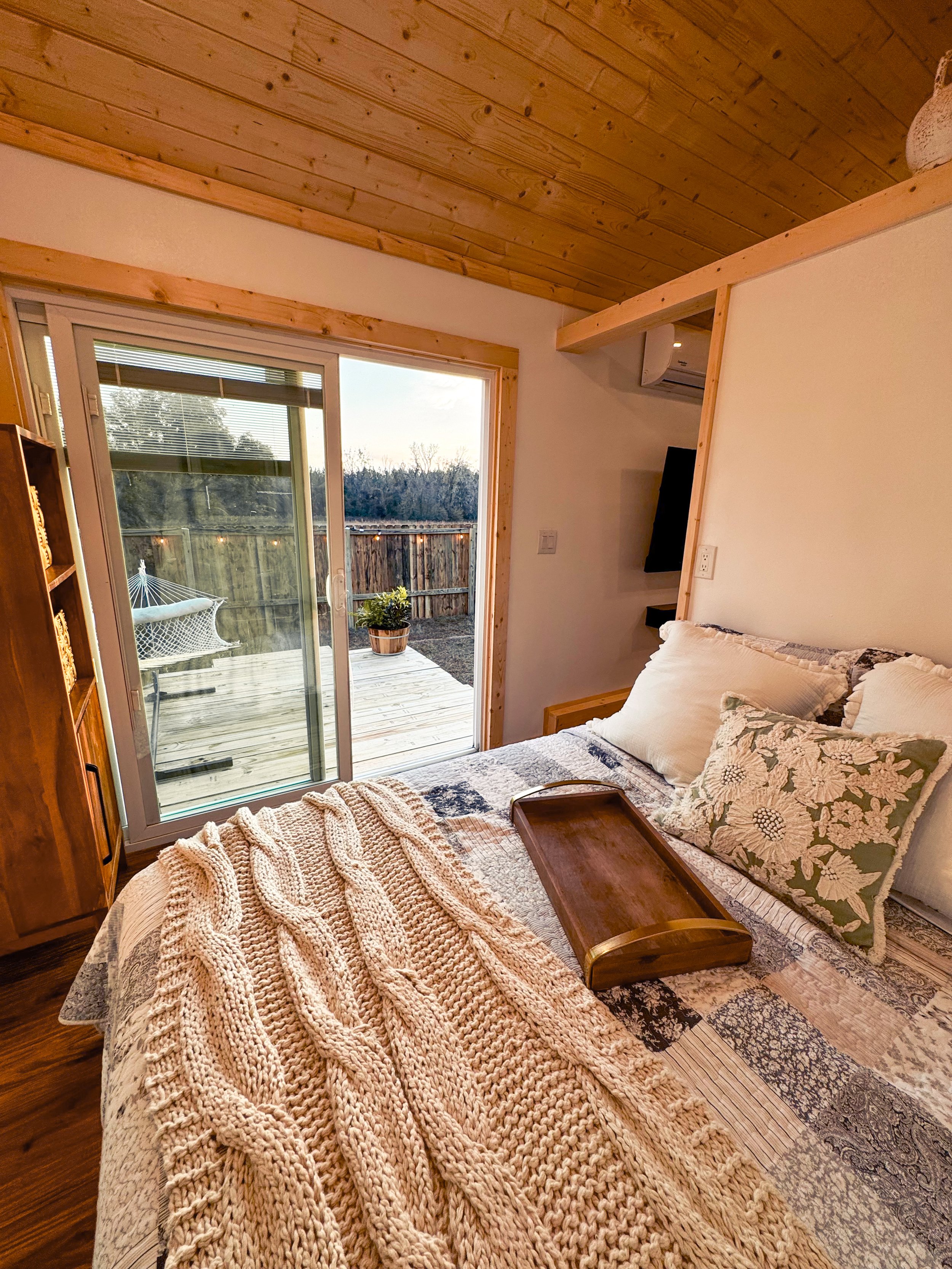

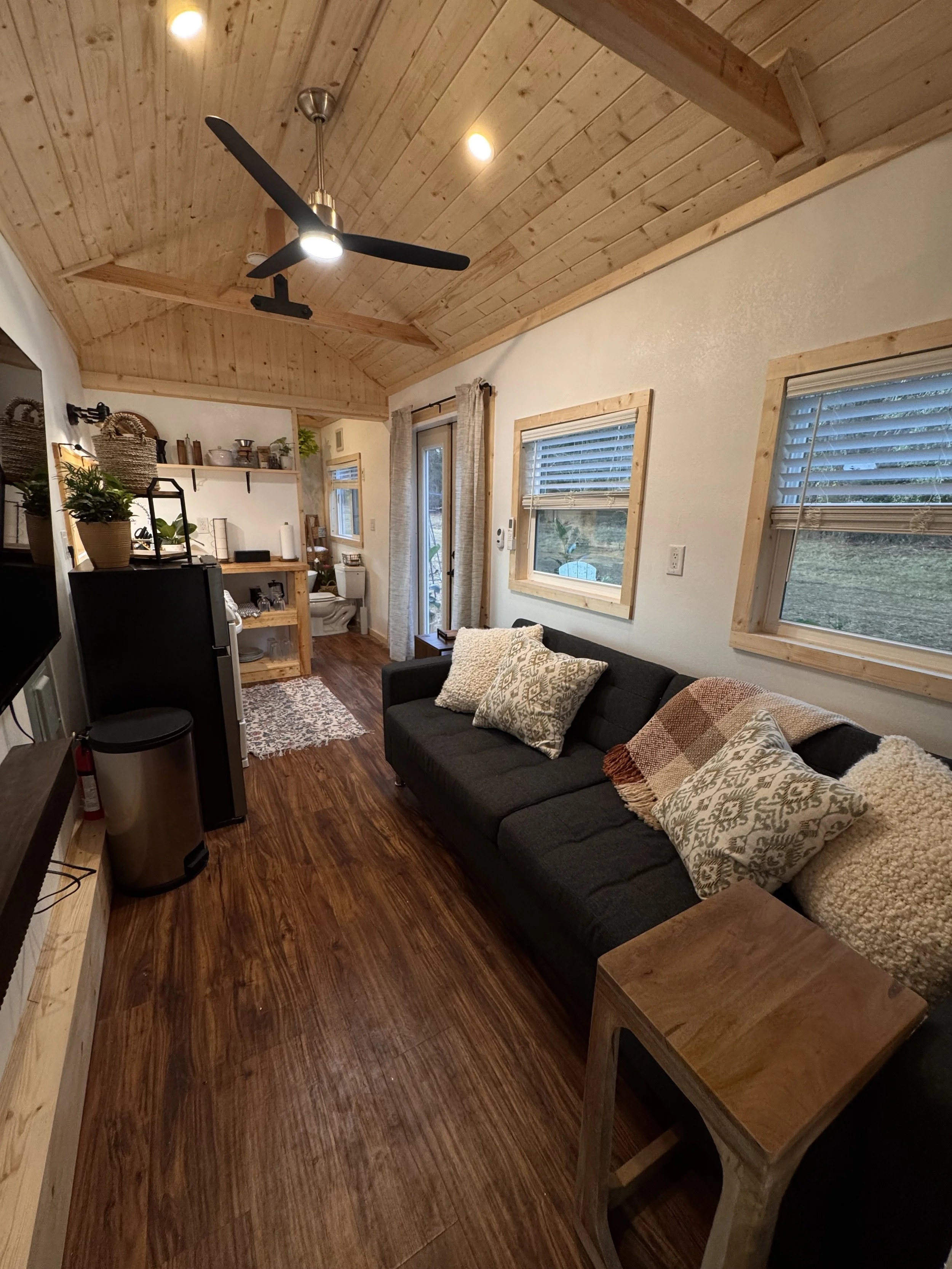

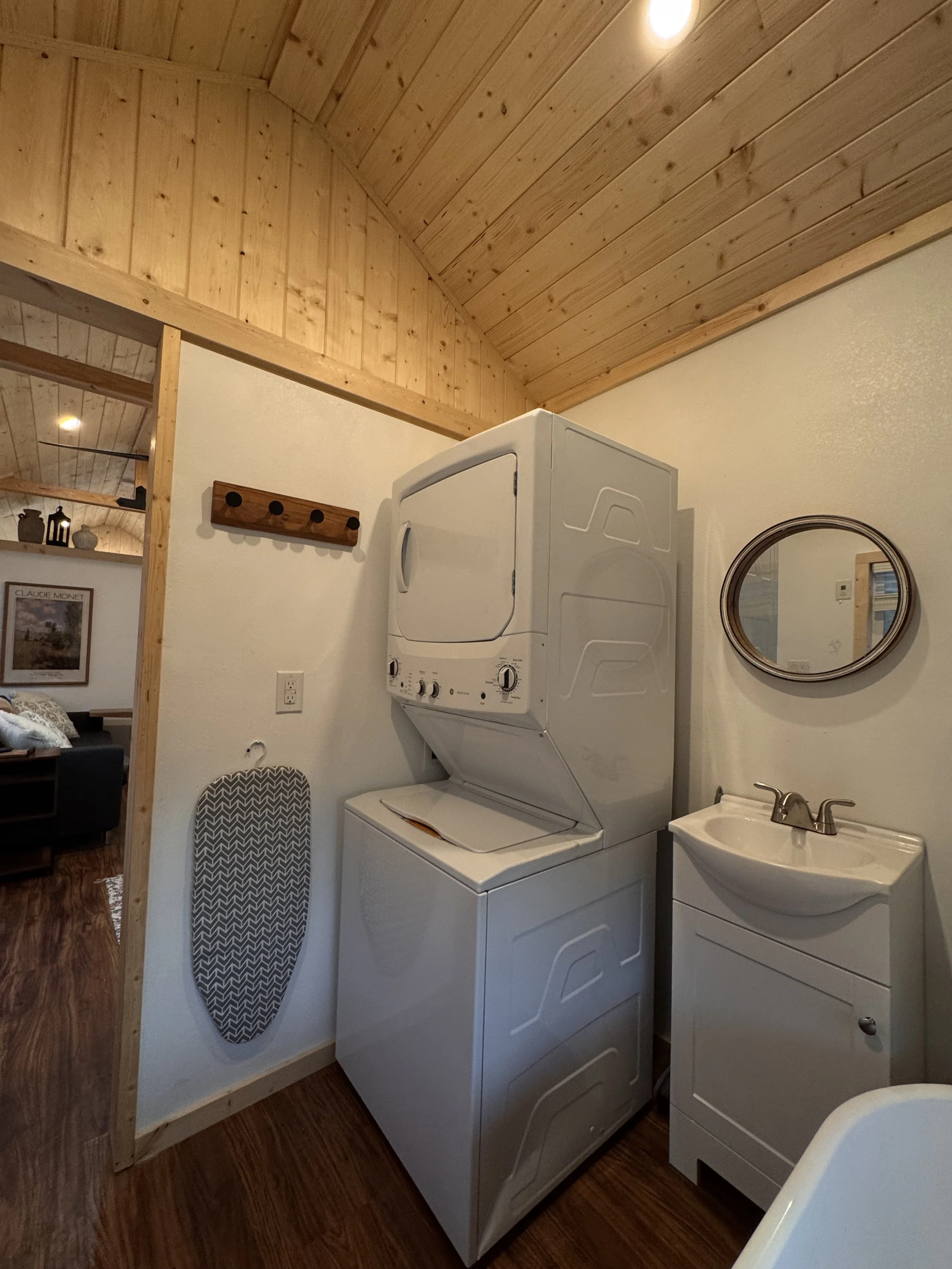

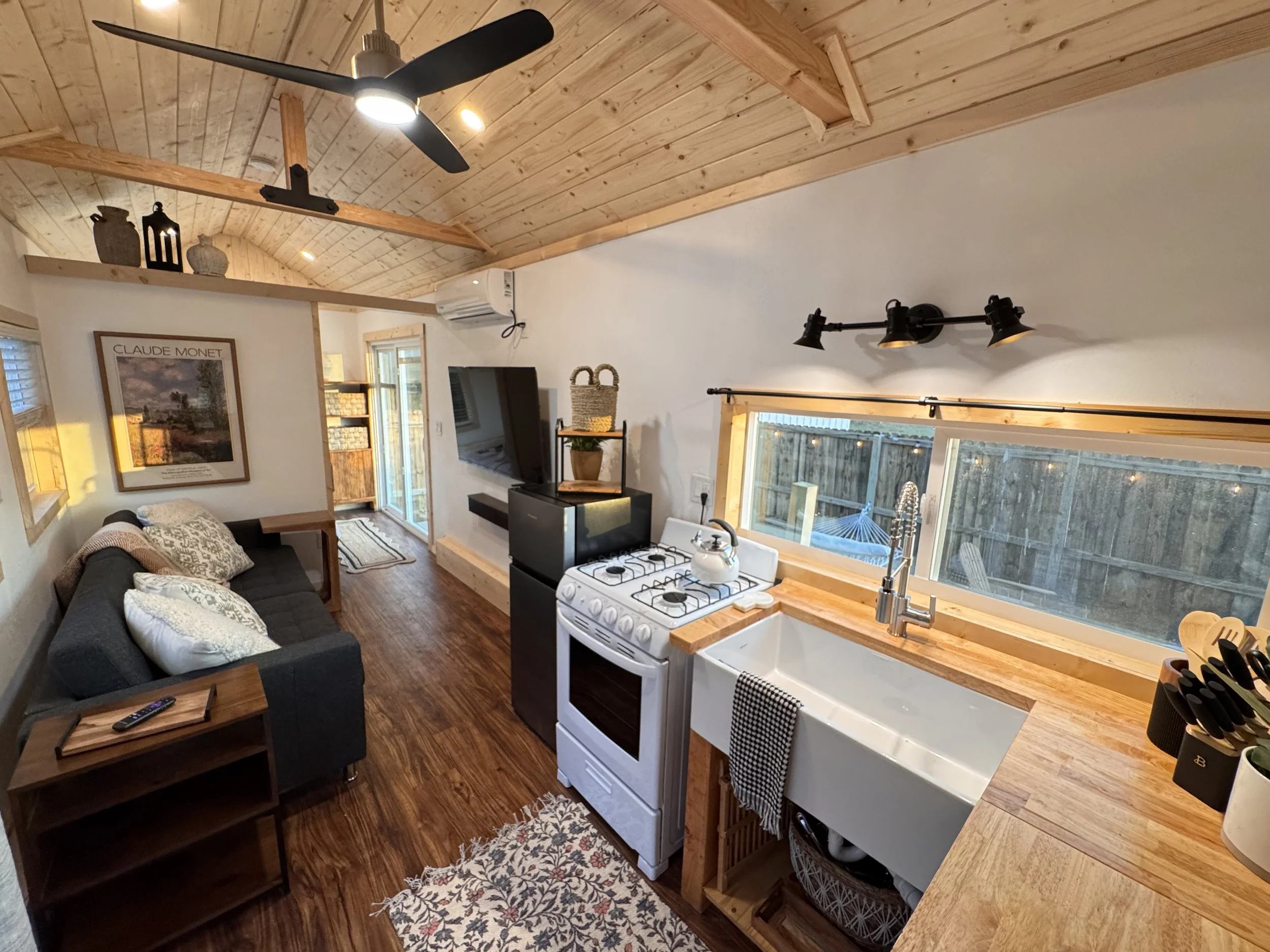

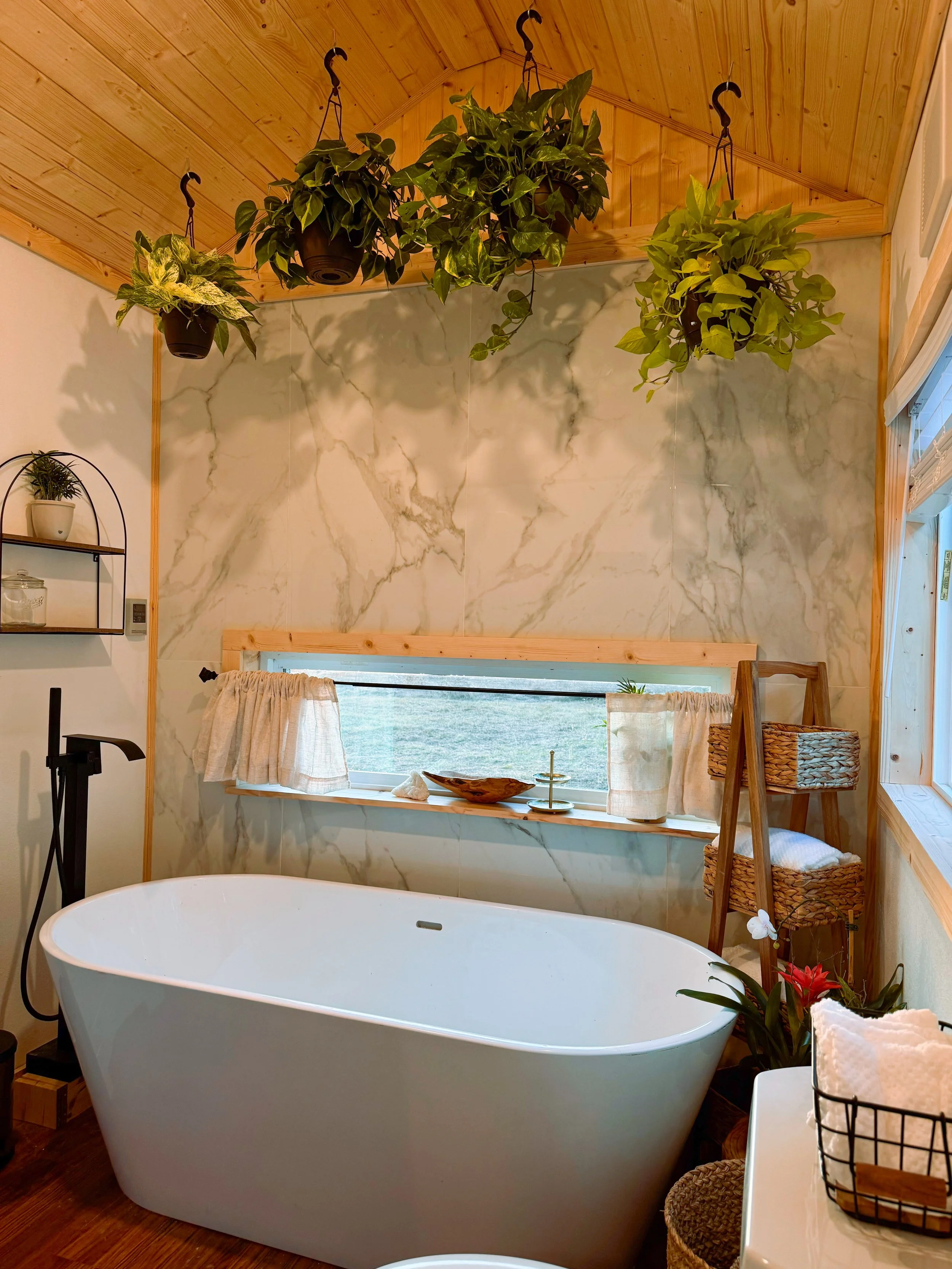

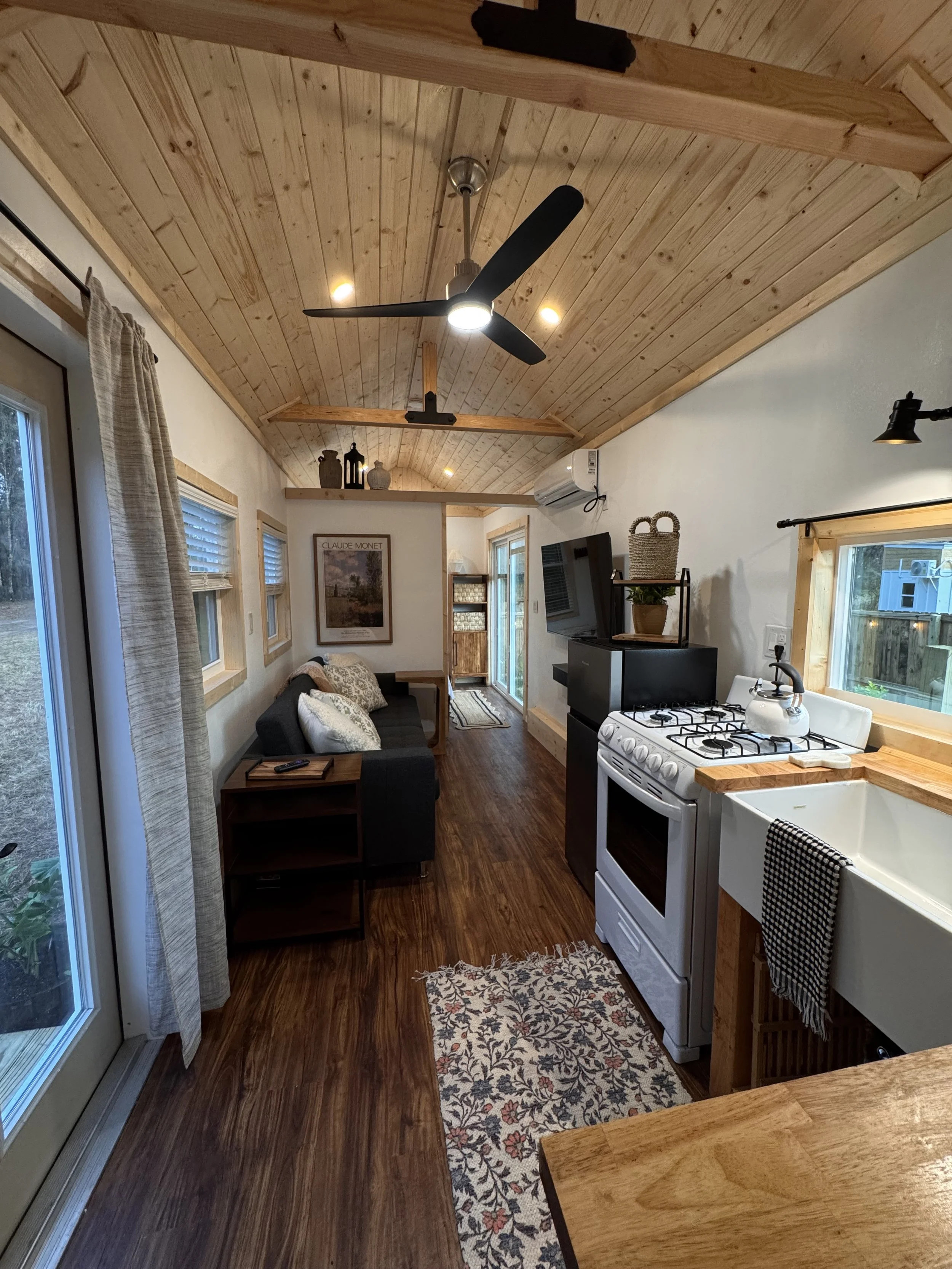

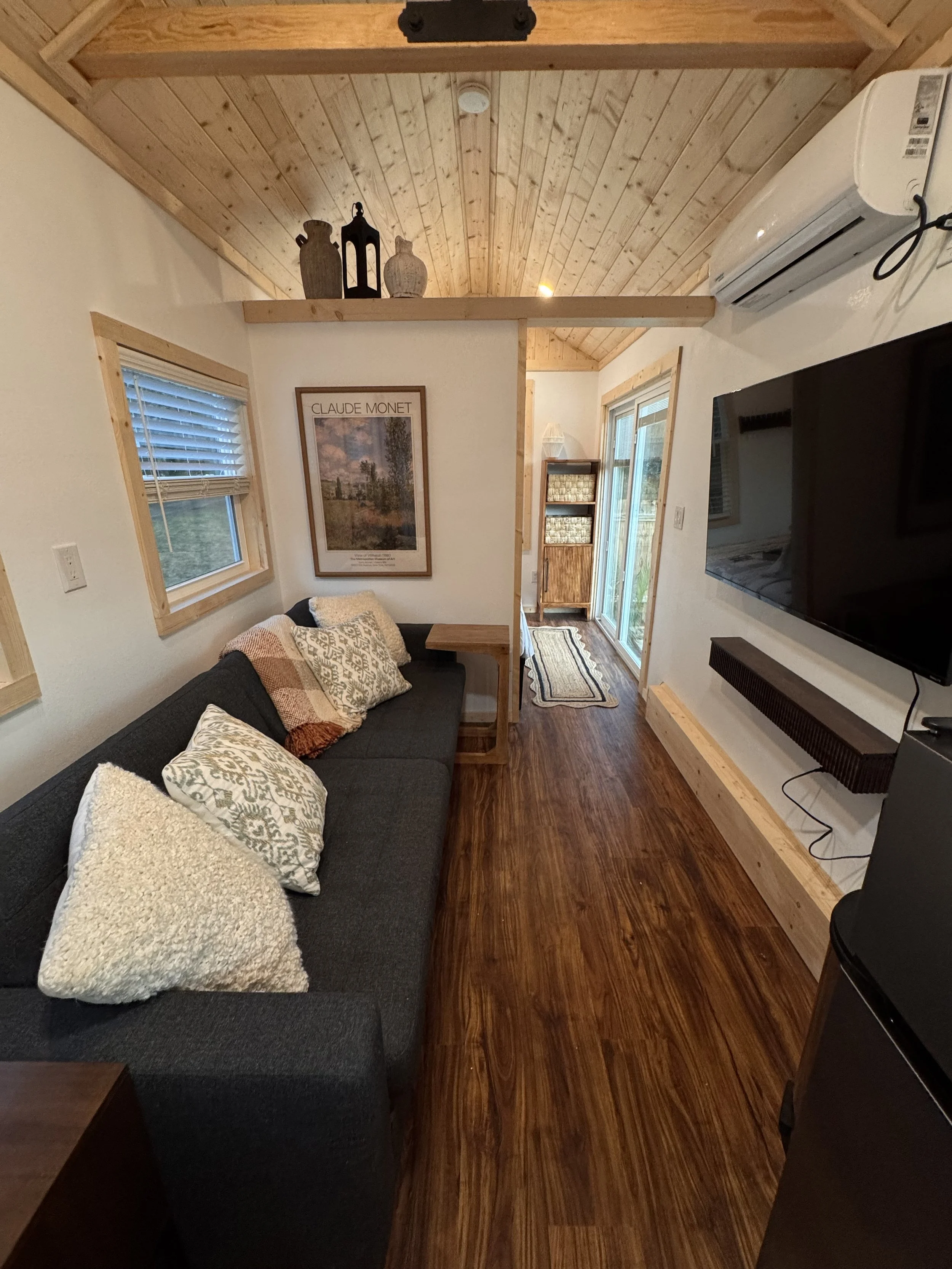

The layout features a bedroom on the main level that fits a queen sized bed, with sliding glass door that opens to the back of the house, on the other side of the bedroom is a living room with space for a full size couch (or pull out bed/daybed to sleep extra guests) and TV. The living room opens up to a kitchen with apartment sized fridge, spacious sink, storage, and cooktop stove. The bathroom can be equipped with either a tub or a shower and has space for a stackable washer and dryer, as well as flush toilet, sink, and storage space.
key details
HOUSE LENGTH (EXTERIOR)
32’
EXTERIOR WIDTH
8’ or 10’
EXTERIOR HEIGHT
13’6”
TOTAL SQ FT
256
LOFT DIMENSIONS
NA
LOFT HEIGHT (at low side)
NA
HEIGHT UNDER LOFTS
NA
SLEEPS
2-4
specs

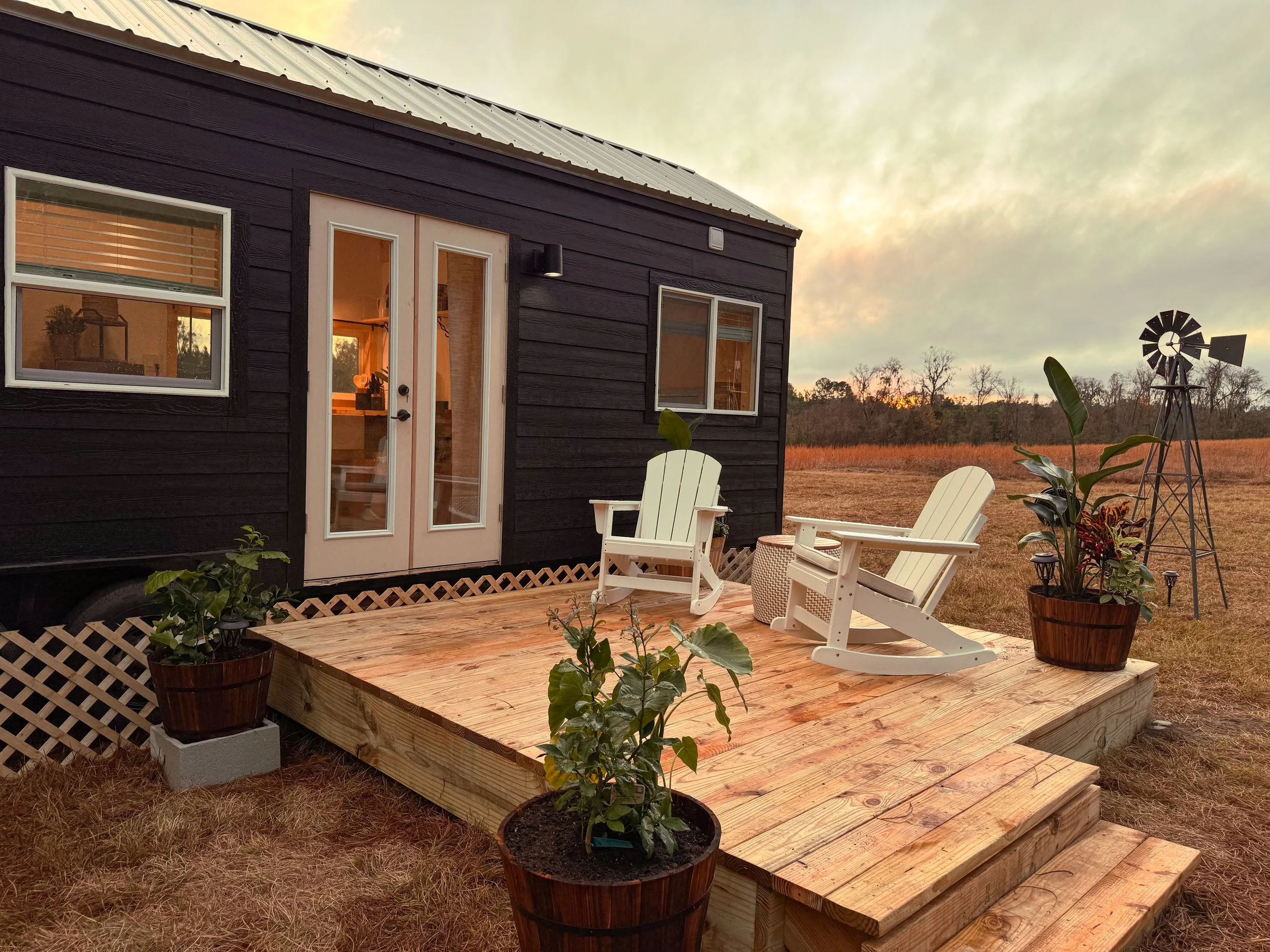

The 32 ft Surya is a complete package with a well-equipped kitchen, bedroom on the main level, a full size bathroom, and a spacious living room for lounging. Add on some outdoor living space and this is all you will ever need!
Overview
32 ft tiny home on wheels. Certified RV by NOAH.
Dimensions
Build Platform
Bumper pull with 5,000 lb each double axles. Hand built chassis, thick gauge steel, trailer brakes, highway lighting, DOT approved.
Roof
Gulf-Rib 29g metal roof. Shed (single-pitch) roofline.
Sheathing
1/2 in OSB with ice&water weather shield
Siding
LP SmartSide painted lap siding with hardi board and batten trim and sealed and stained pine tongue and groove accents (custom colors available).
Power hookup
50 amp hookup for electrical service to home. Exterior outlet.
Water system
Fresh water hose inlet.
Hot water heater
Electric tankless instant hot water heater.
Heat / Cooling
Ductless mini split A/C and heat pump, 12,000 BTU.
Walls
Painted drywall or painted shiplap (paint & stain options available).
Ceiling
Stained pine tongue & groove (paint & stain options available). Option to upgrade to painted shiplap.
Subfloor
2x6 framed R19 insulated subfloor with 3/4” plywood.
Insulation
R13 fiberglass roll insulation in walls. R19 fiberglass roll insulation in floor and ceiling.
Flooring
Pro grade waterproof vinyl throughout kitchen, and living space (color options available). Option for porcelain tile in bathroom.
Doors
Fiberglass door, full glass with built in blinds.
Windows
Vinyl double paned impact resistant windows.
Lighting
Slim profile LED ceiling lights. Exterior light sconce.

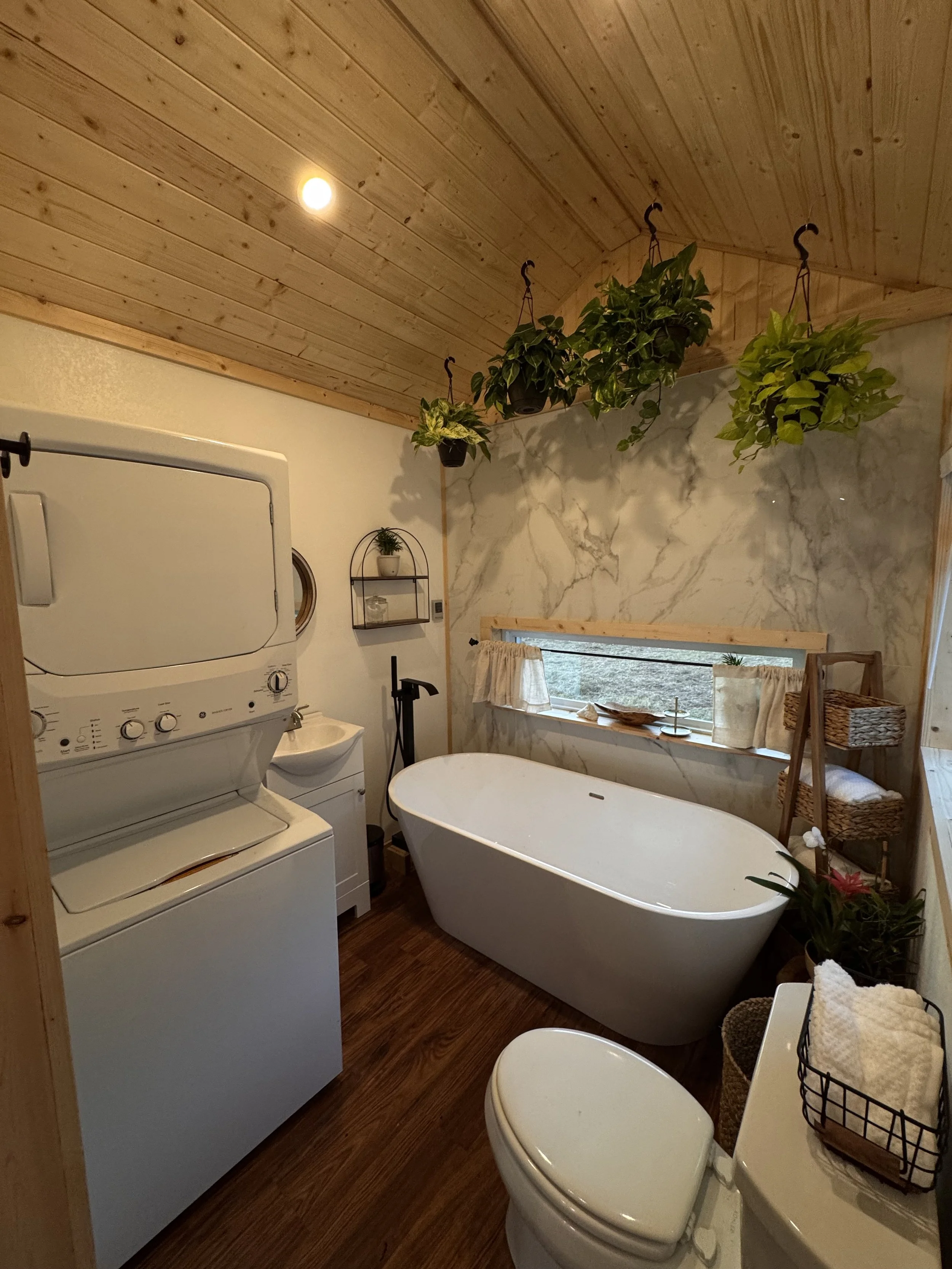

Bathroom
36″ x 34″ shower pan with full tile surround. 30” bathroom vanity with engineered marble top. Custom pine swing door. Standard porcelain gravity flush toilet. Connections (vent/outlet) for alternative toilet or composting toilet also available.

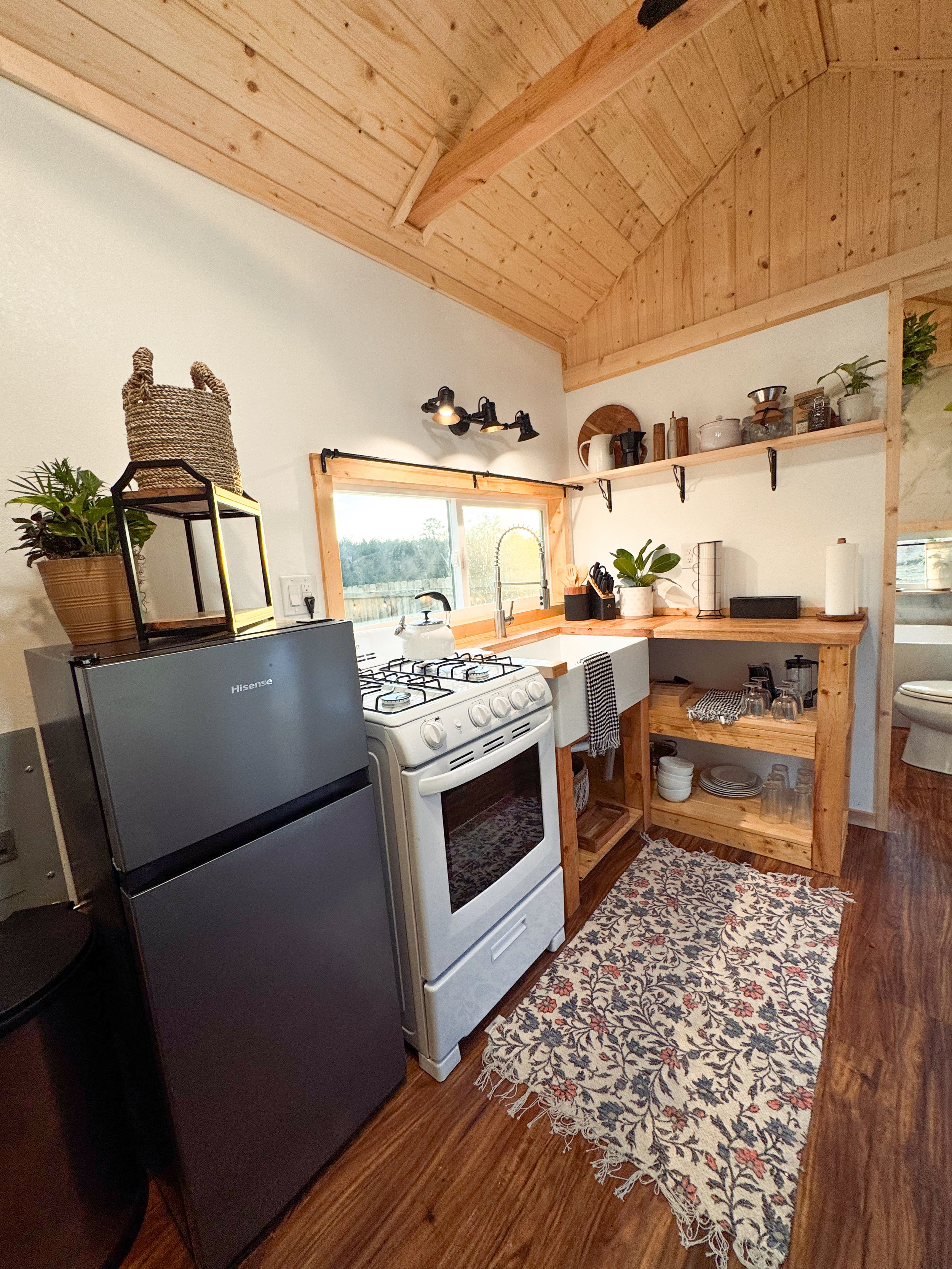

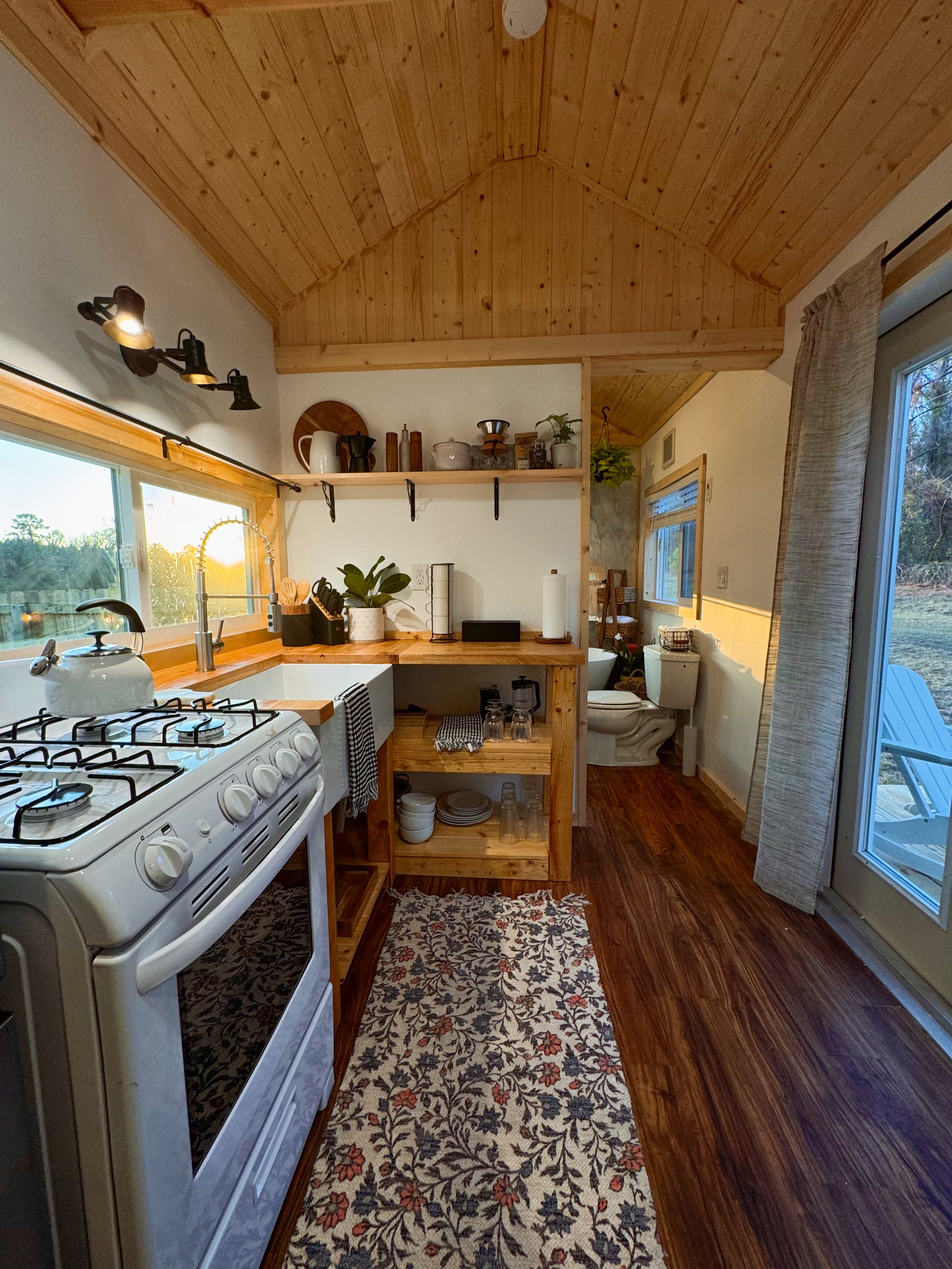

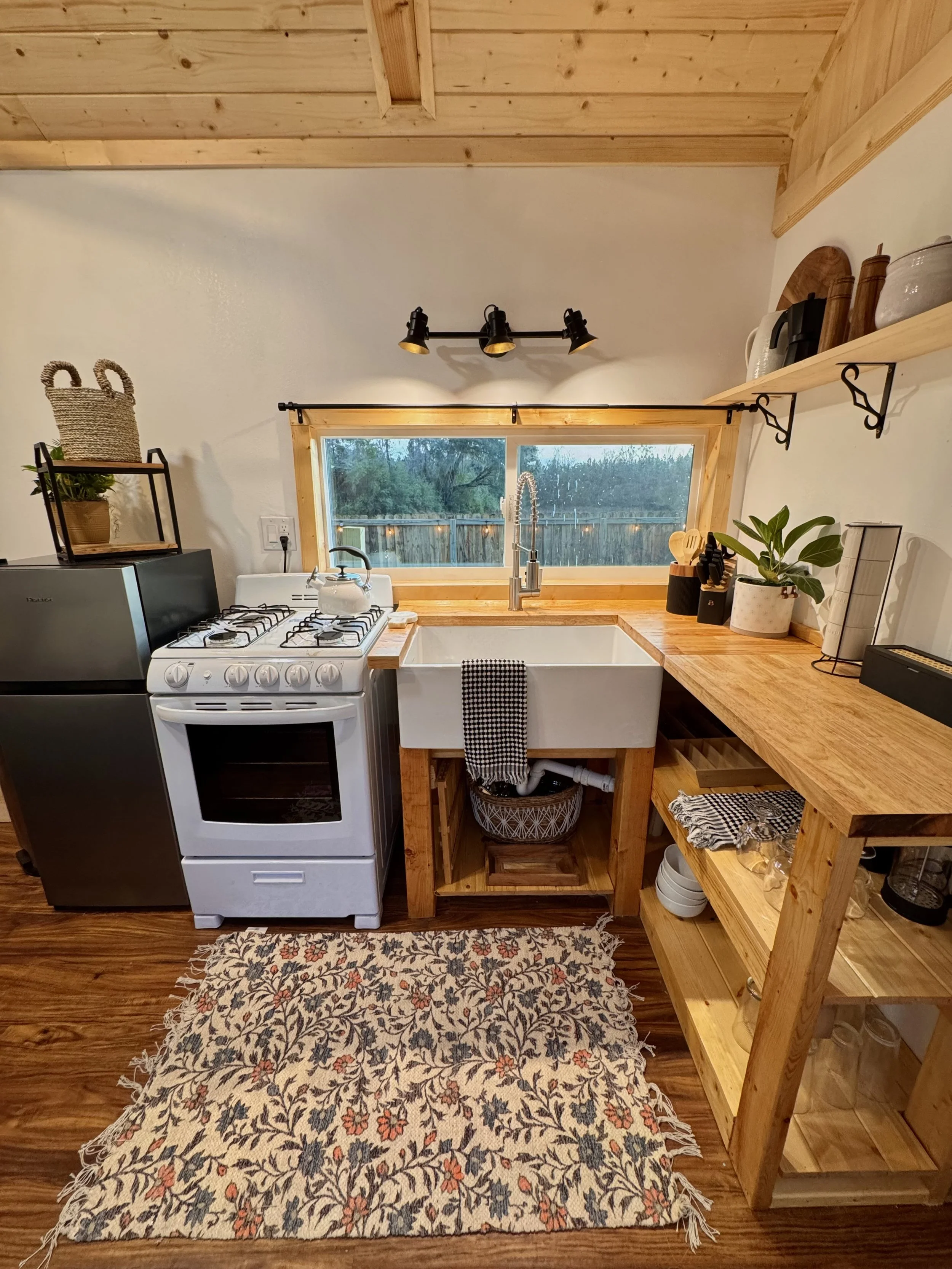

Kitchen

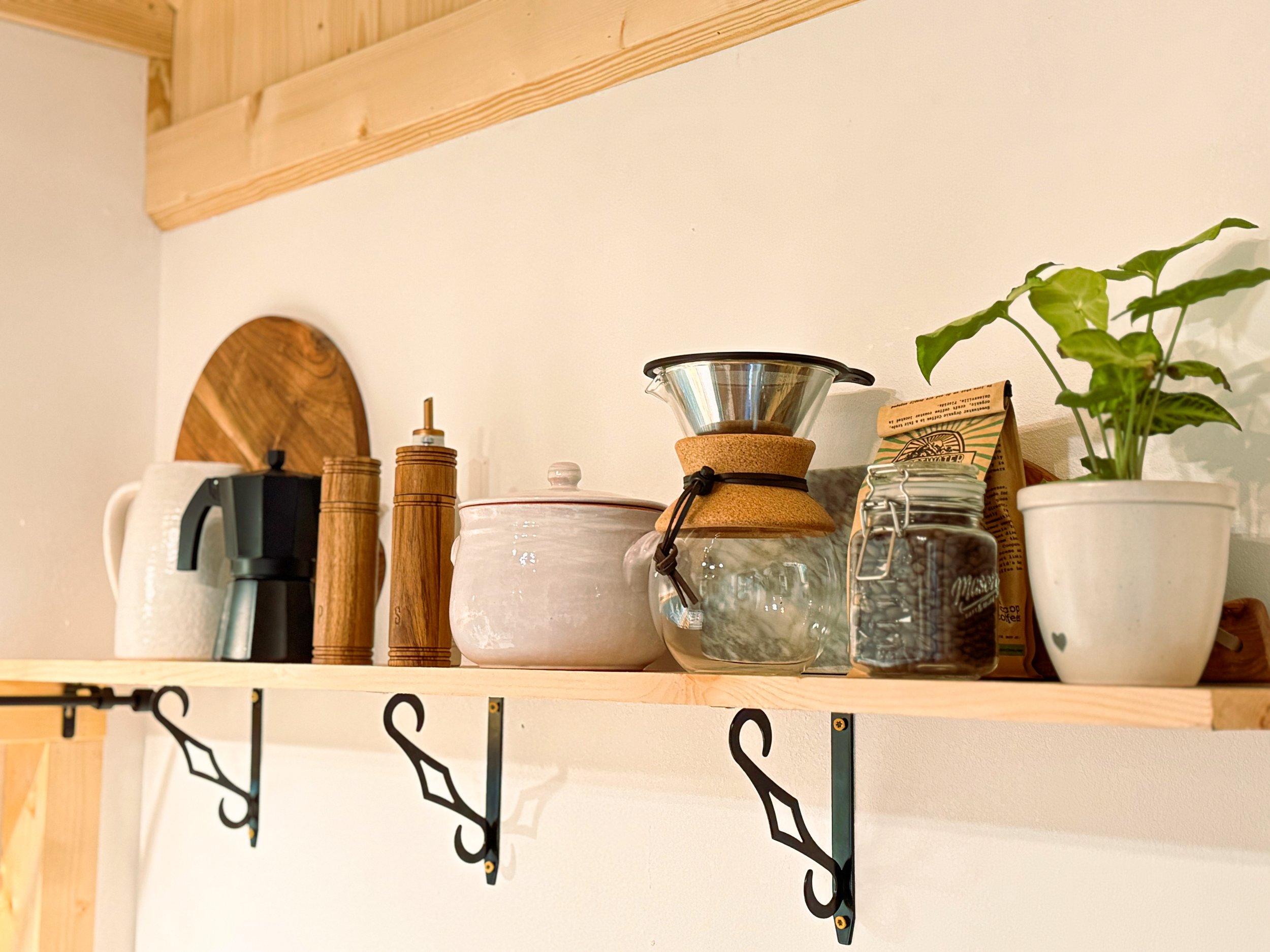

Closed lower cabinets painted; open upper shelving. Butcher block counter with drop-in stainless or composite sink. Brushed nickel, oil rubbed bronze, or black faucet and cabinet hardware (other finish options available).
Appliances
2-burner electric cooktop infrared stove flush mount with butcher block counters. 3.1 cubic foot stainless steel mini fridge with separate freezer compartment. Washer/dryer combo unit is included
Living Area
Open living area for furniture, desk, or bed. 5x7’ floor space.
Loft & Access
No loft in standard model. Can customize to add 1-2 lofts.
Warranty
One year limited warranty on workmanship.
Ready to order your Surya Tiny Home now?
