Leela Tiny Home
20 x 8 FT
tiny home on wheels
4 people
sleeps up to 4 people
$50,000
starting price
design
The Leela is a cozy 2 loft tiny home, perfect for a short term rental or long-term living space. With a spacious bathroom, kitchen, dining space, and under-stairs closet, this tiny house has everything you need.

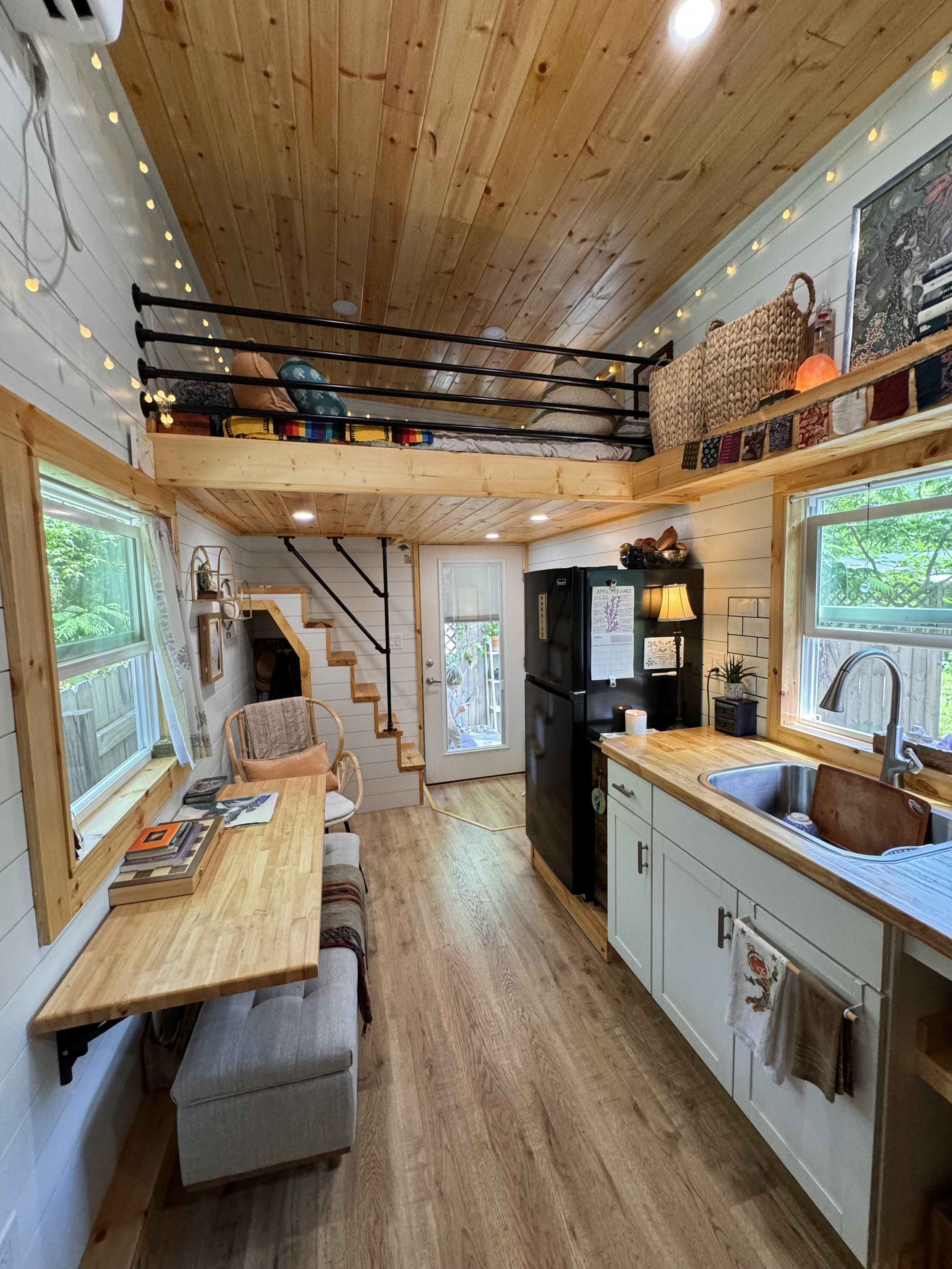

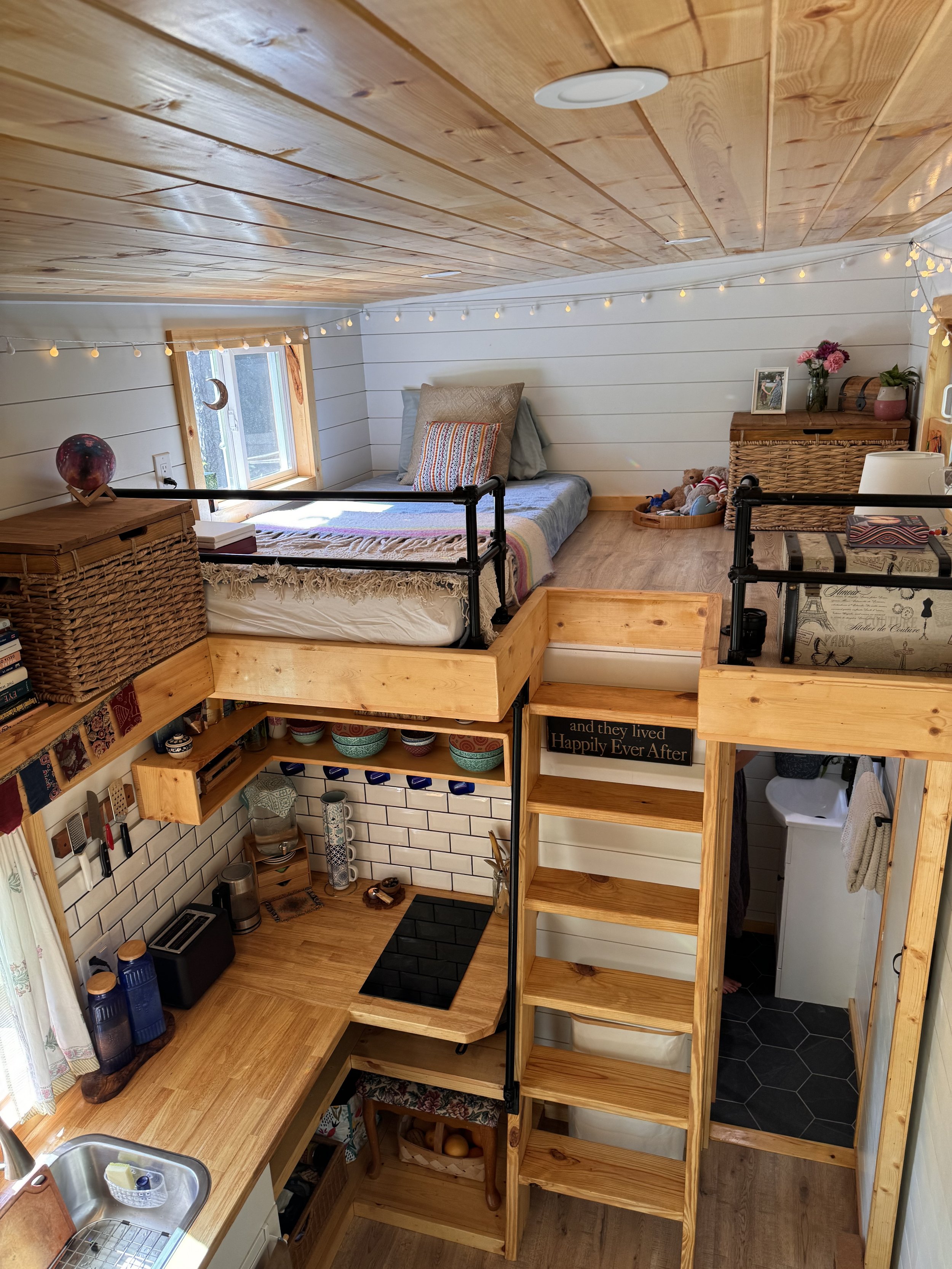

The Leela was a one of a kind tiny house designed with our builders’ creative freedom. The layout features two queen sized sleeping lofts along with space for a couch or dining space on the main level. The closet under the stairs add storage for long term living. A simple, minimalist design perfect for someone looking to go tiny.
key details
HOUSE LENGTH (EXTERIOR)
20’
EXTERIOR WIDTH
8’
EXTERIOR HEIGHT
13’6”
TOTAL SQ FT
288
LOFT DIMENSIONS
7’x8’ and 7’x5’
LOFT HEIGHT (at low side)
36”
HEIGHT UNDER LOFTS
6’6”
SLEEPS
4
specs
The 20 ft Leela is a complete package with a well-equipped kitchen, closet, two spacious sleeping lofts, a roomy bathroom with shower, vanity, flush toilet, and storage, and an open living space for lounging.
Overview
20 ft tiny home on wheels. Certified RV by NOAH.
Dimensions
Build Platform
Bumper pull with 7,500 lb each double axles. Hand built chassis, thick gauge steel, trailer brakes, highway lighting, DOT approved.
Roof
Gulf-Rib 29g metal roof. Shed (single-pitch) roofline.
Sheathing
1/2 in OSB with ice&water weather shield
Siding
LP SmartSide painted lap siding with hardi board and batten trim and sealed and stained pine tongue and groove accents (custom colors available).
Power hookup
50 amp hookup for electrical service to home. Exterior outlet.
Water system
Fresh water hose inlet.
Hot water heater
Electric tankless instant hot water heater.
Heat / Cooling
Ductless mini split A/C and heat pump, 12,000 BTU.
Walls
Painted drywall or painted shiplap (paint & stain options available).
Ceiling
Stained pine tongue & groove (paint & stain options available). Or shiplap.
Subfloor
2x6 framed R19 insulated subfloor with 3/4” plywood.
Insulation
R13 fiberglass roll insulation in walls. R19 fiberglass roll insulation in floor and ceiling.
Flooring
Pro grade waterproof vinyl in lofts, kitchen, and living space (color options available). Porcelain tile in bathroom.
Doors
Fiberglass door, full glass with built in blinds.
Windows
Vinyl double paned energy-efficient windows.
Lighting
Slim profile LED ceiling lights. Exterior light sconce.

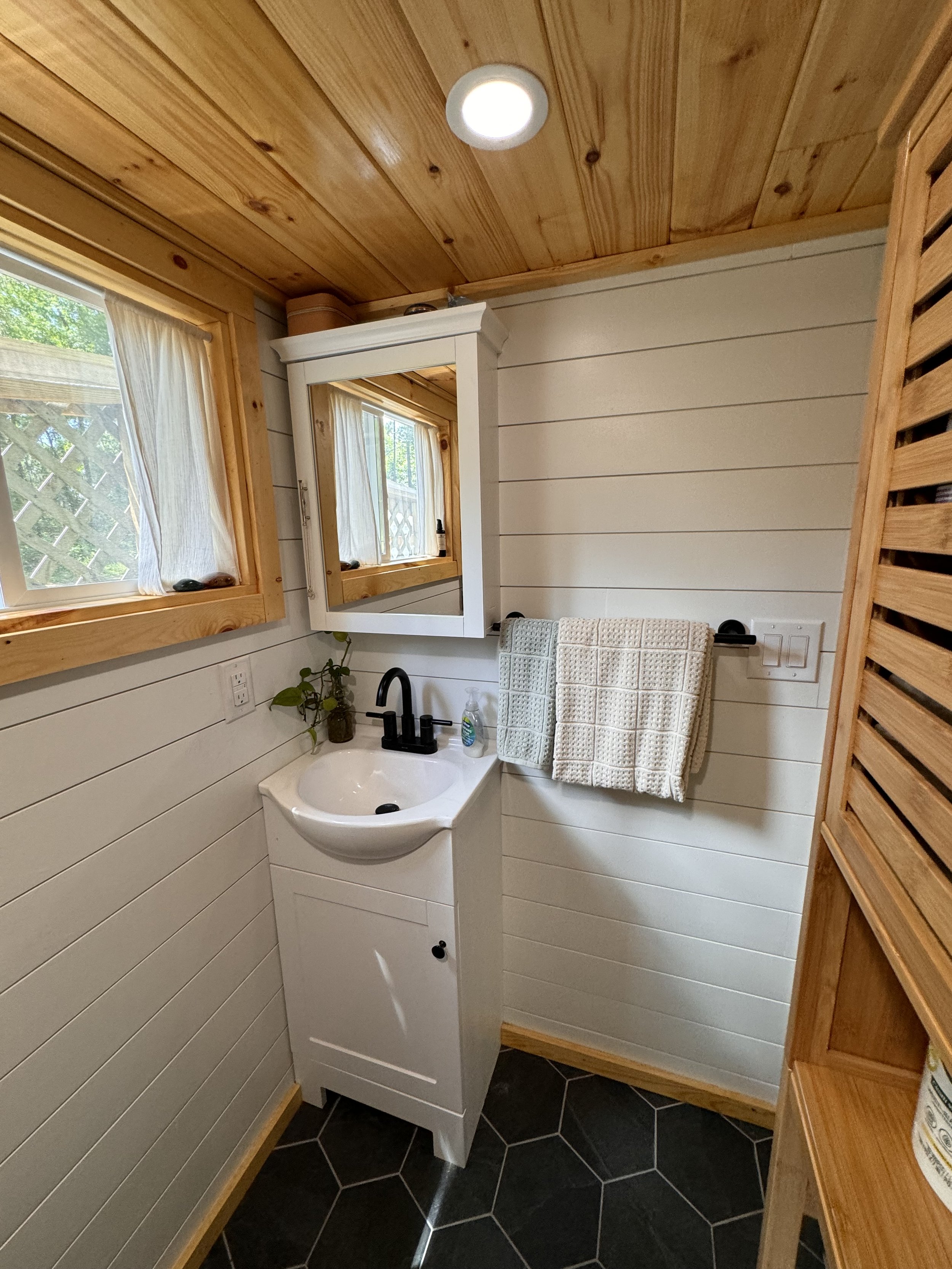

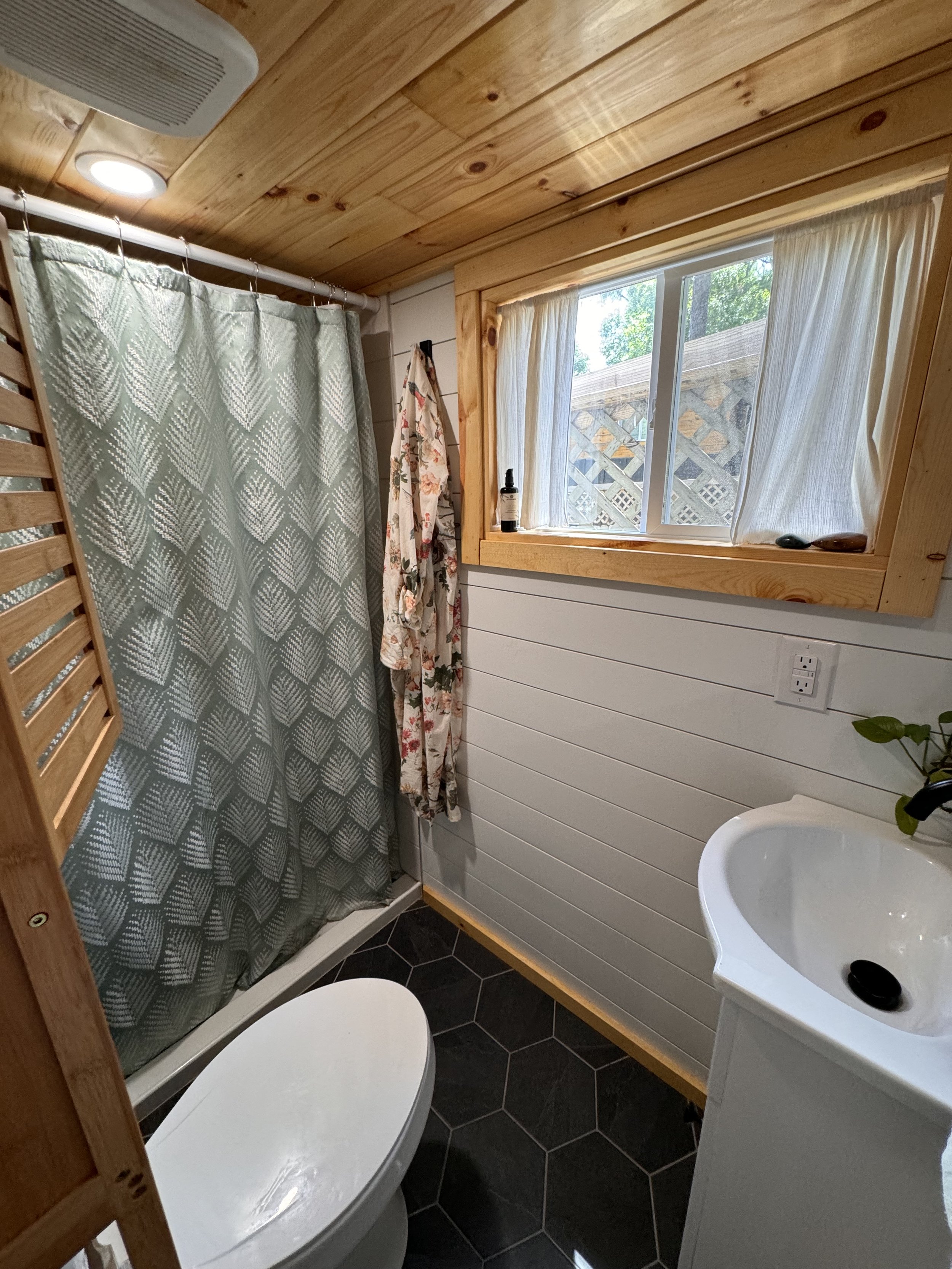

Bathroom
48″ x 34″ shower pan with full tile surround. 18” bathroom vanity with engineered marble top. Custom pine swing door. Standard porcelain gravity flush toilet. Connections (vent/outlet) for alternative toilet or composting toilet also available.

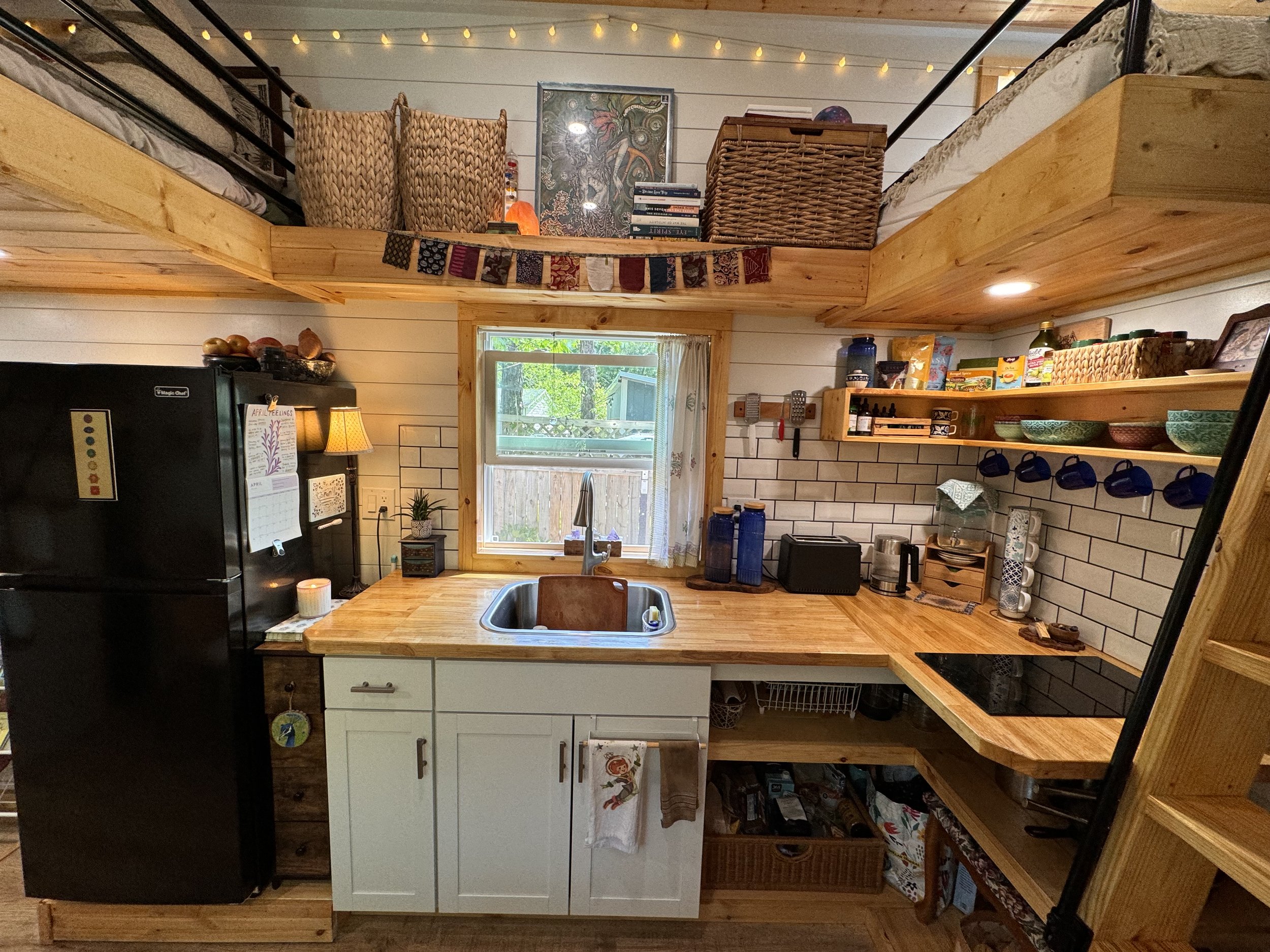

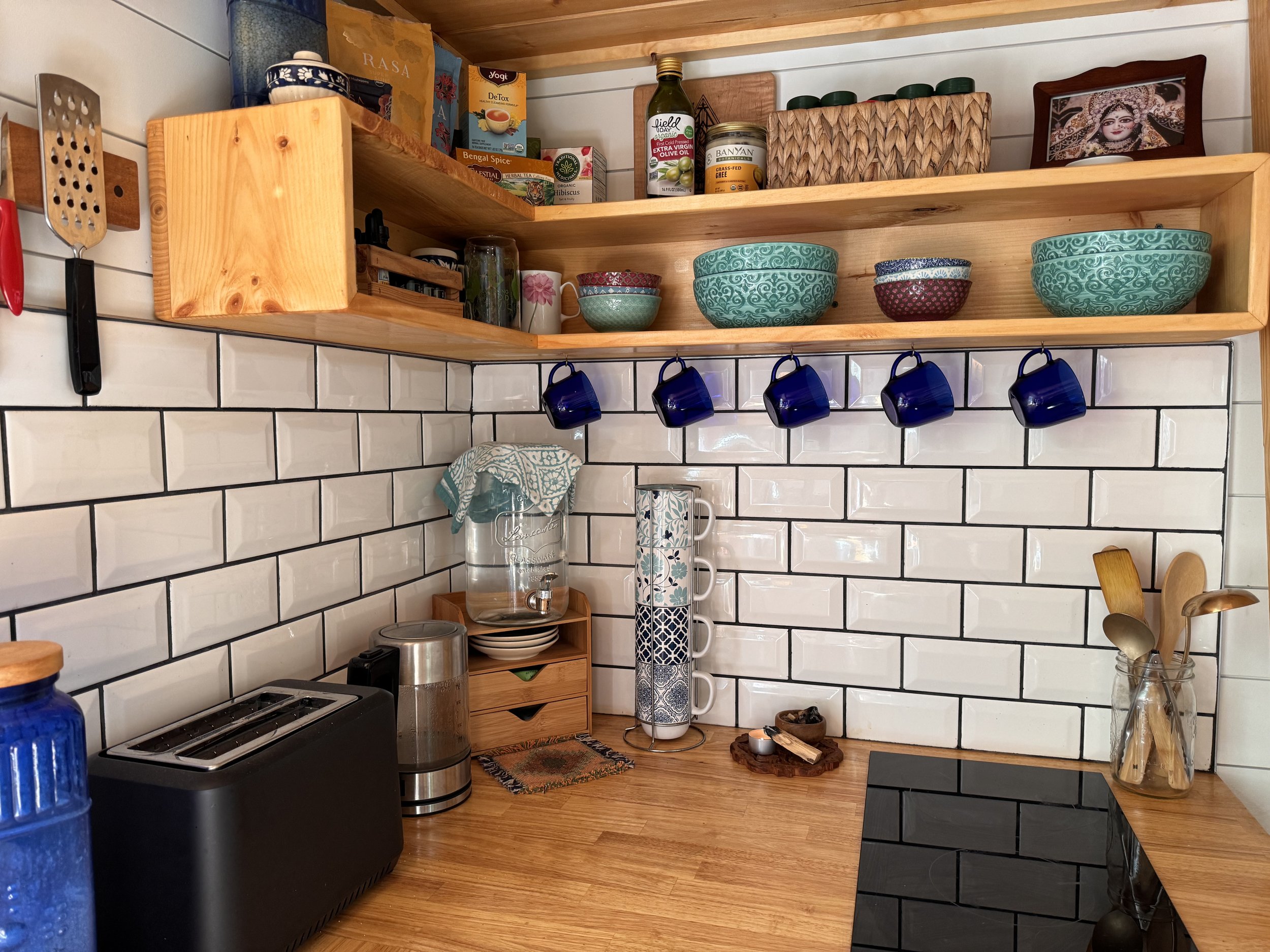

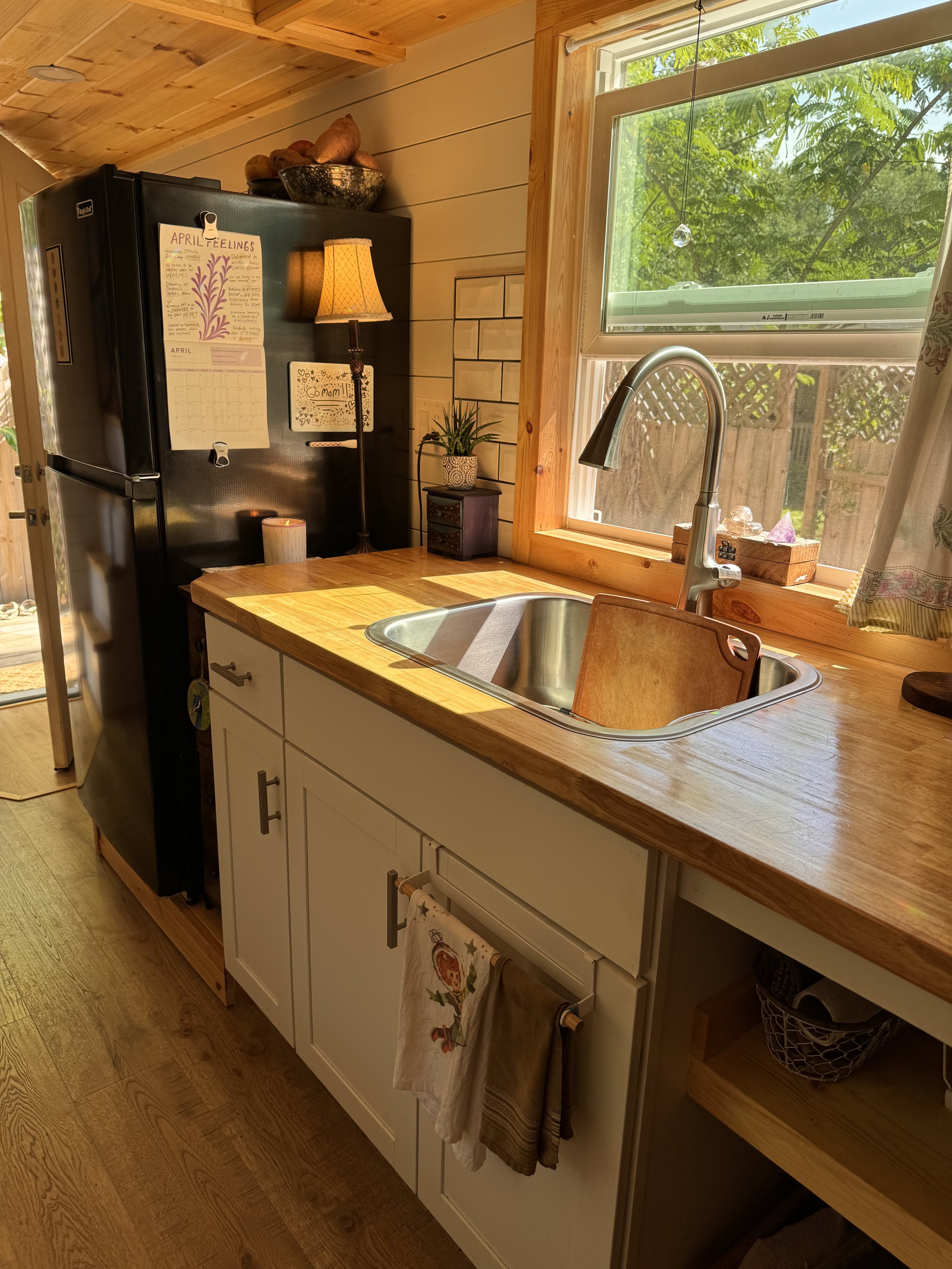

Kitchen
open upper and lower shelving. Butcher block counter with drop-in stainless or composite sink. Brushed nickel, oil rubbed bronze, or black faucet and cabinet hardware (other finish options available).
Appliances

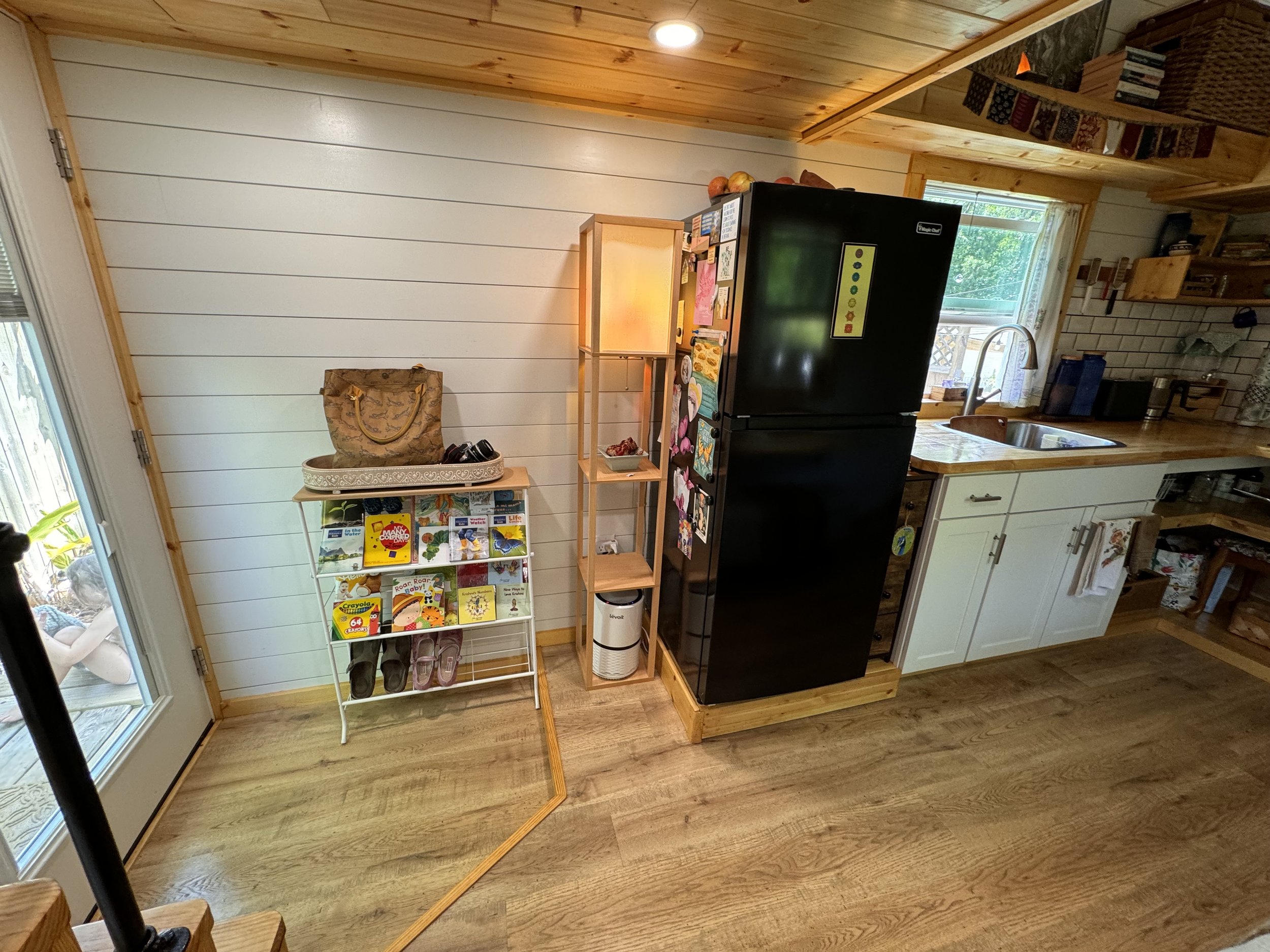

2-burner electric cooktop stove flush mount with butcher block counters. 10 cubic foot stainless steel mini fridge with separate freezer compartment.

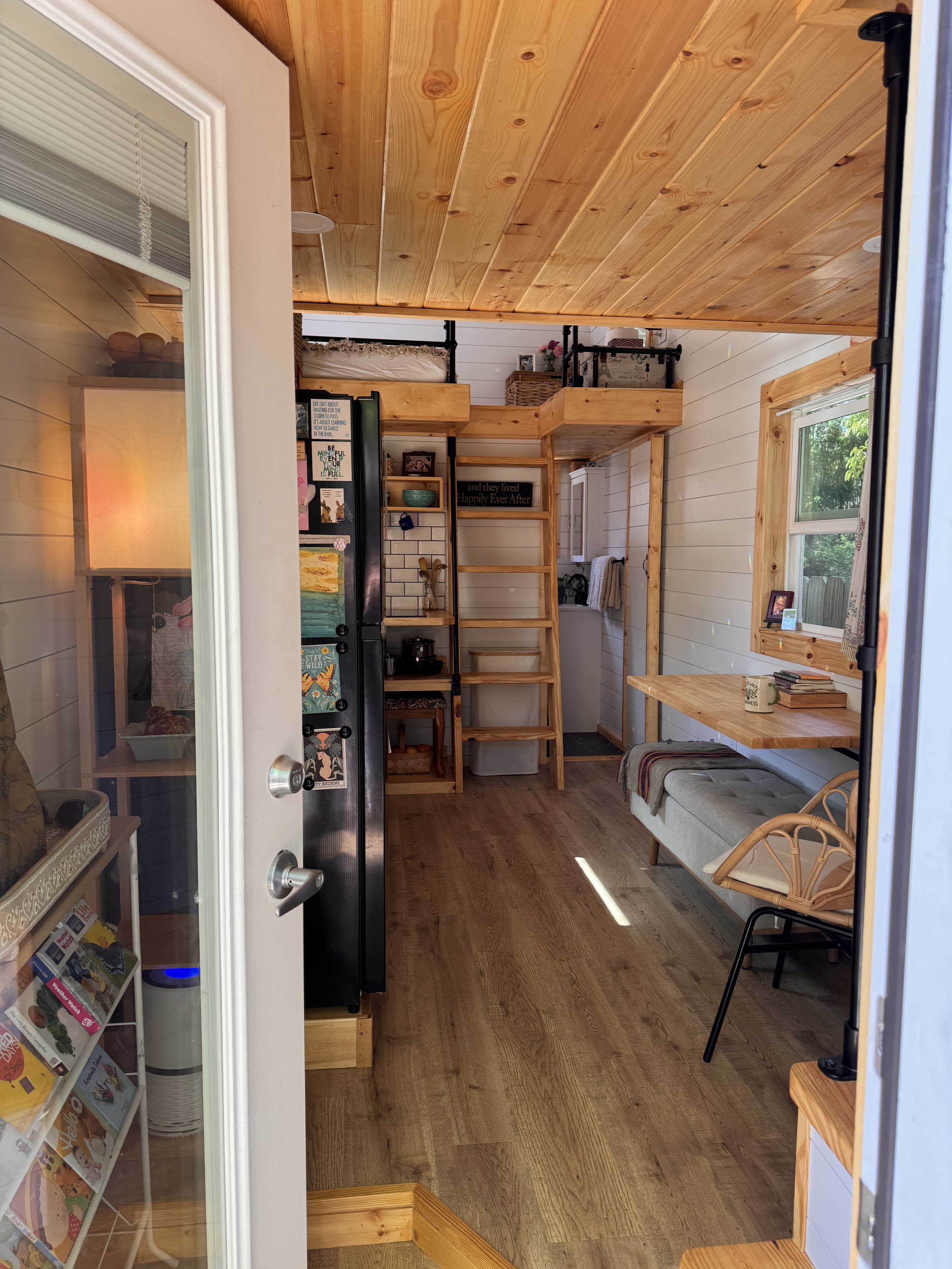

Living Area

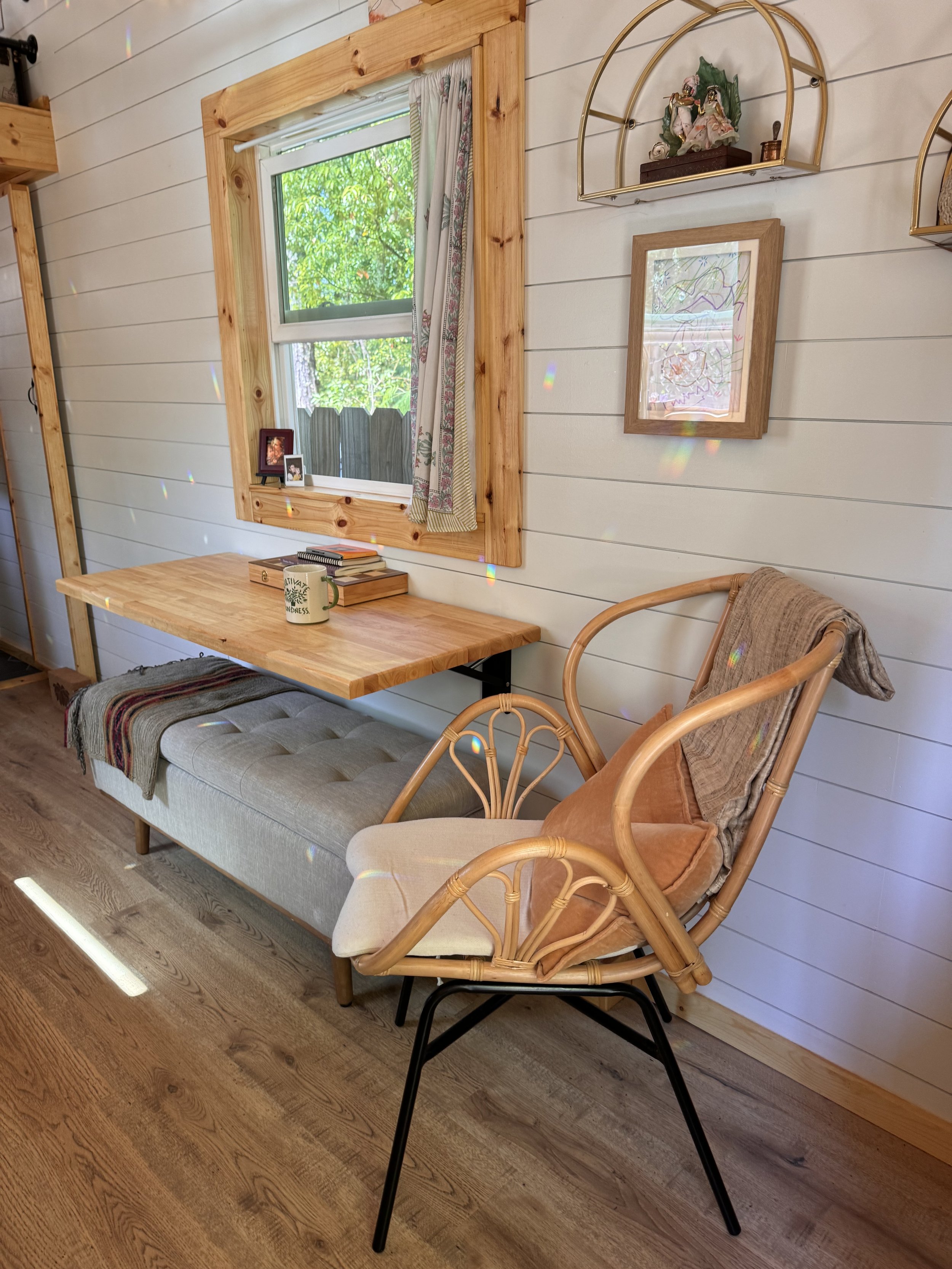

Open living area for furniture, desk, or couch.

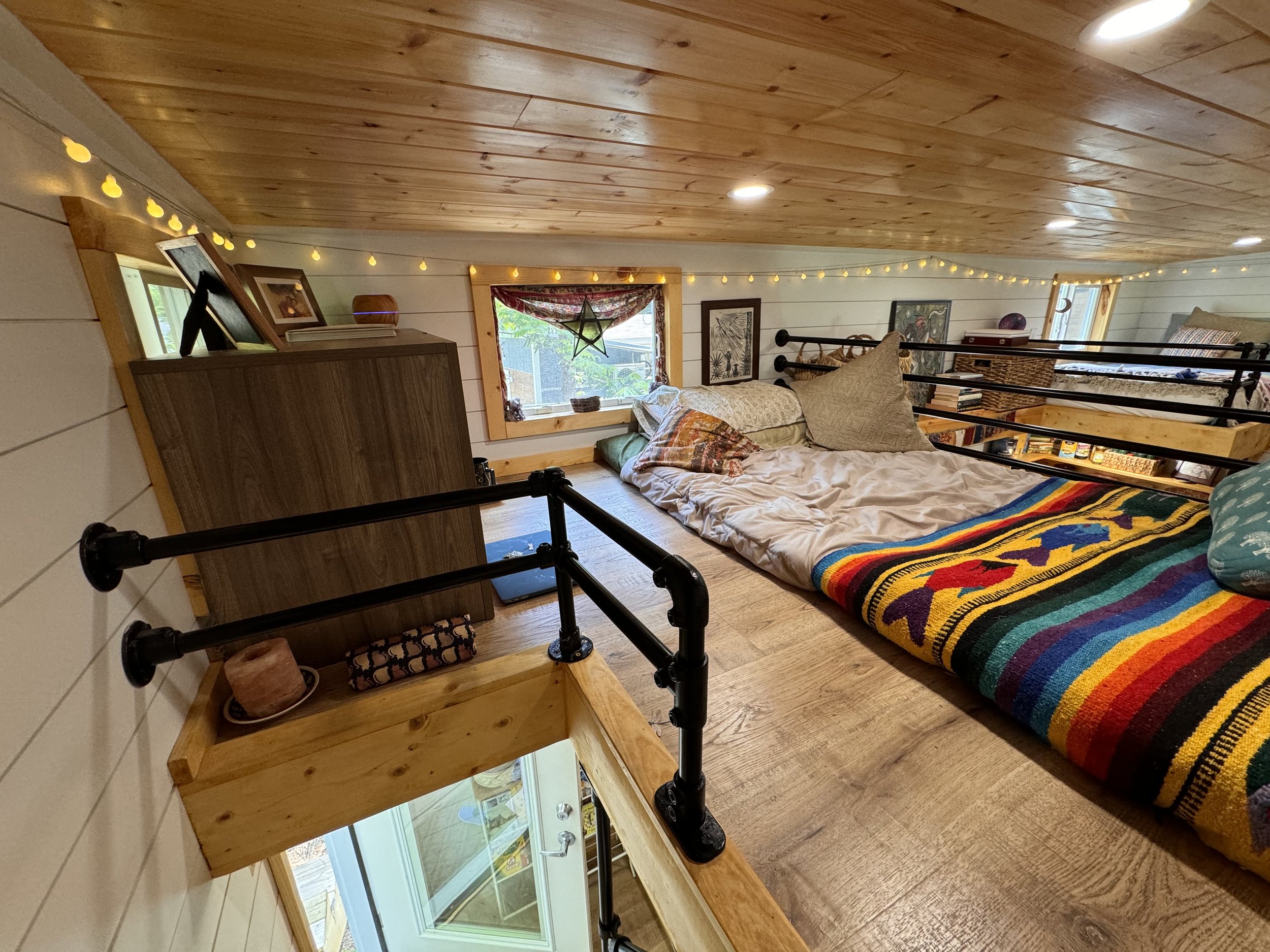

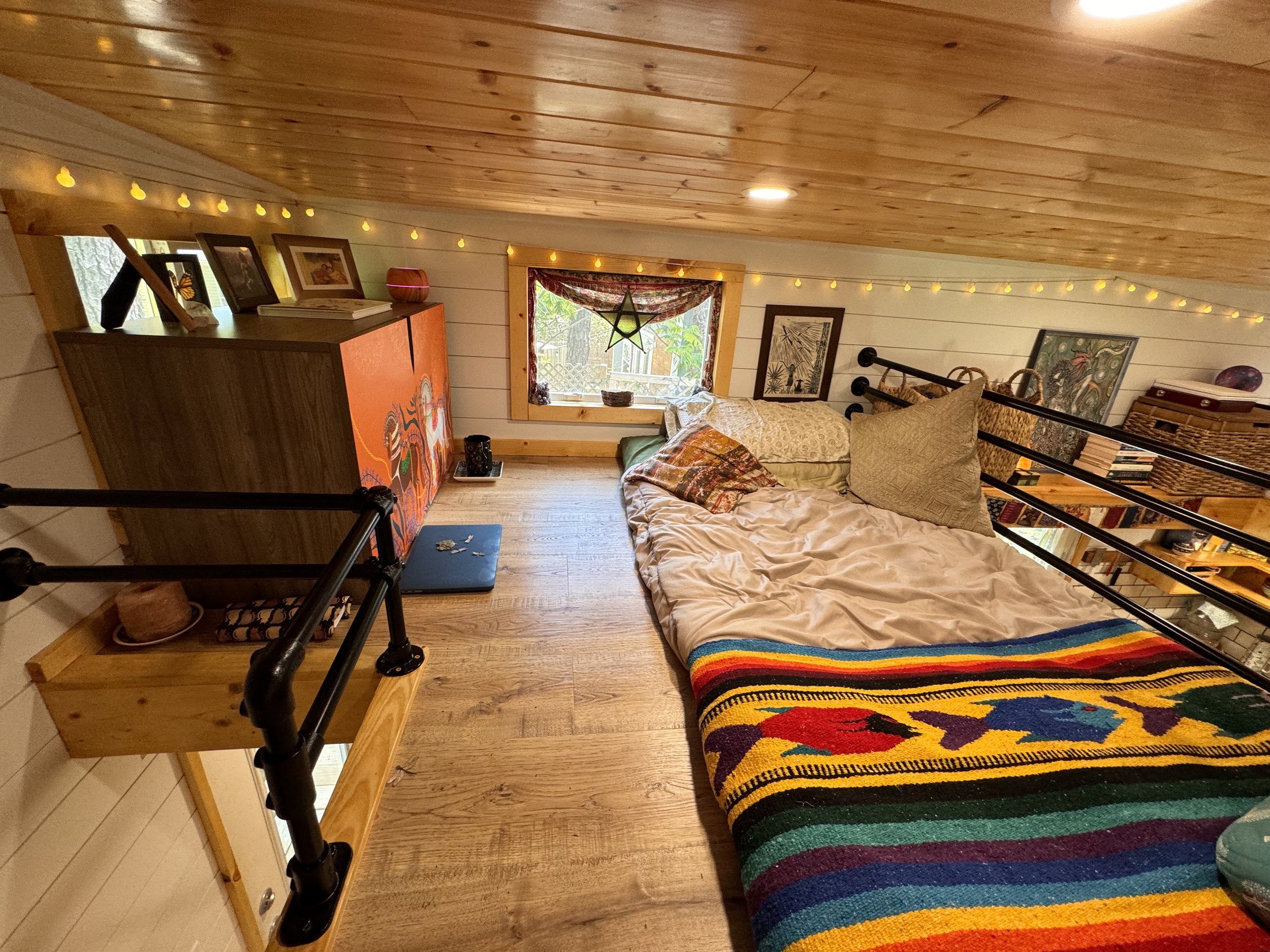

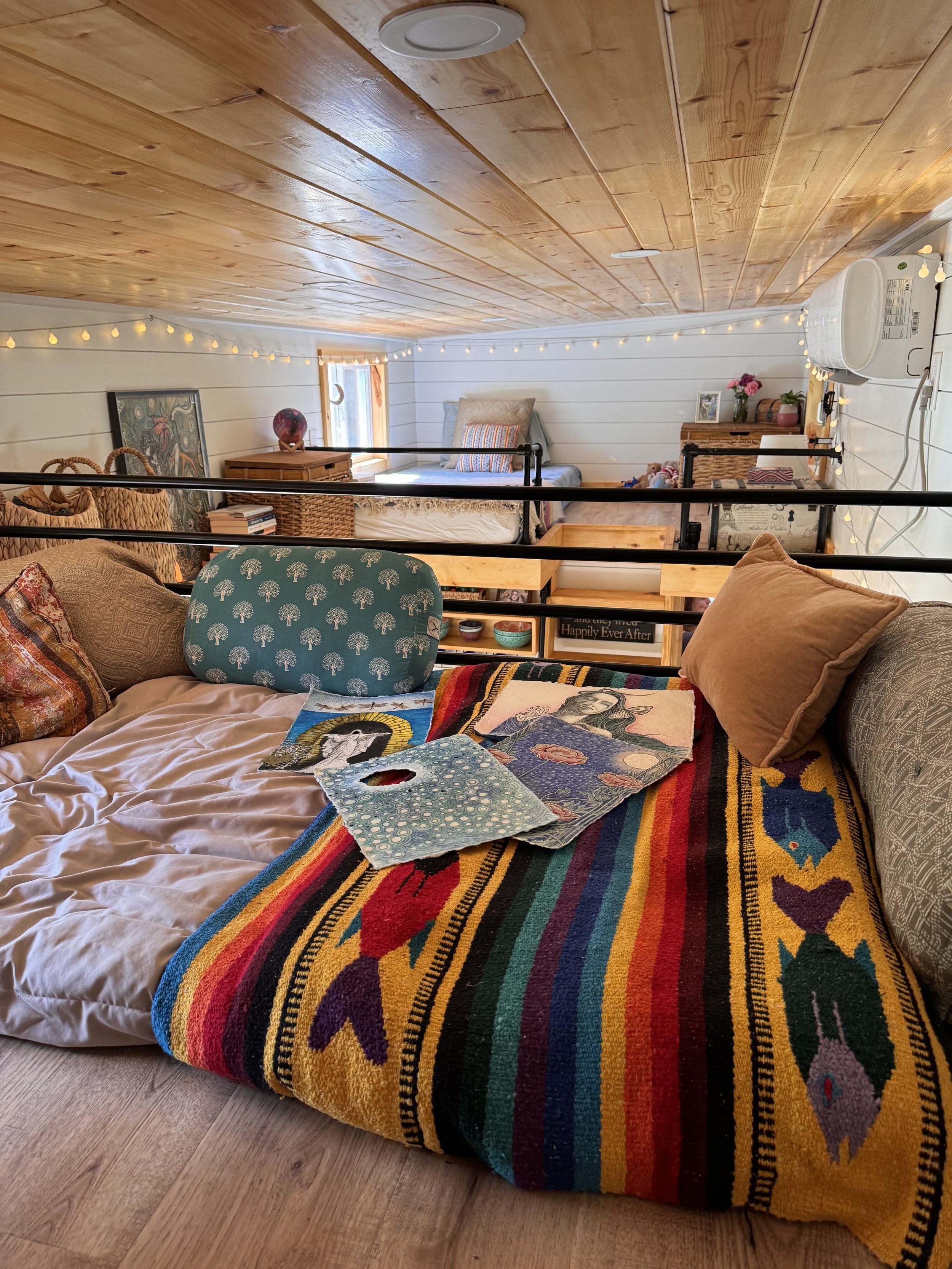

Loft & Access

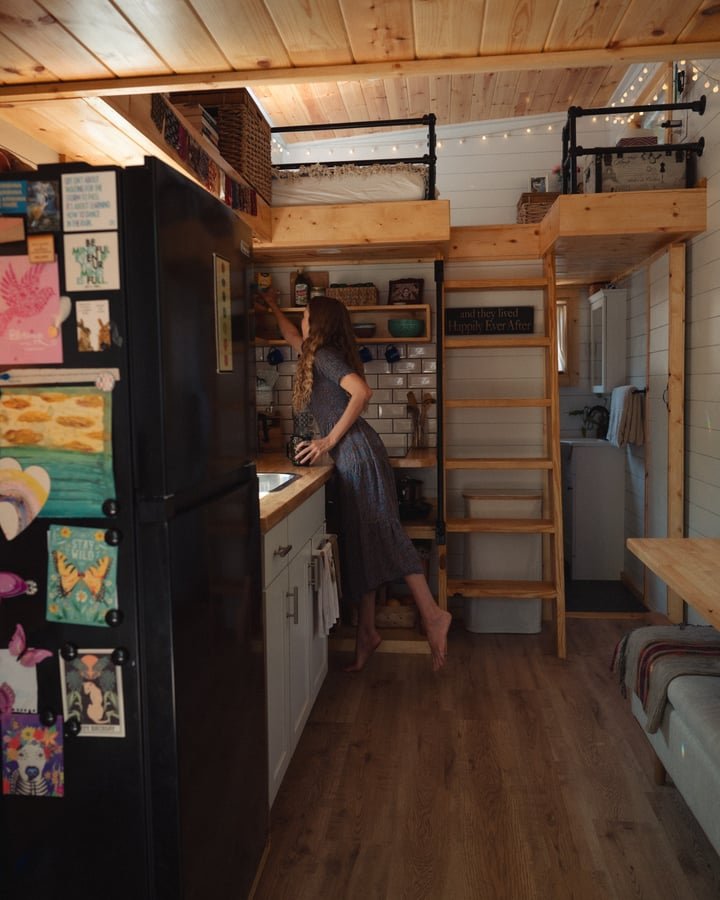

7x8’ master loft with open stairs access. 7x5’ second loft with ladder access. Black metal railings.
Warranty
One year limited warranty on workmanship.
Ready to order your Leela Tiny Home now?
